TCD-104-S400

4-ch K-type Thermocouple

KEY FEATURES:

4-channel K-type thermocouple (± 0.5℃ Accuracy)
Thermocouple length: 50 cm
Sampling Rate: 50 ms to 60000 seconds
recording for each channel: 450,000
Traceable temperature data
Easy-to-use software interface
Powered by 4x AAA batteries (60 hours @ 50 ms sampling rate)

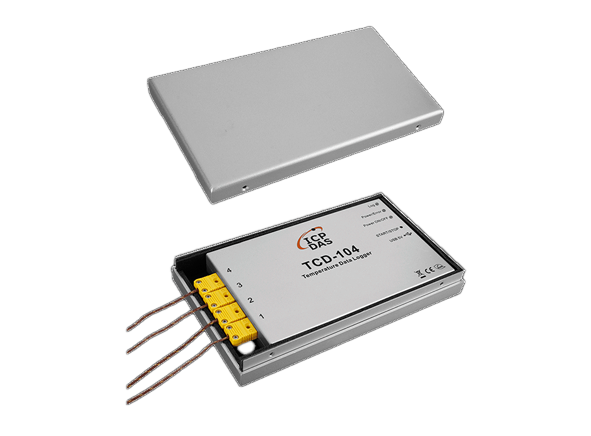

400℃ operating temperature with thermal insulation box

ICP Electronics Australia is proud to introduce ICP DAS’s TCD-104/S400. With a common K-type thermocouple, the TCD-104 temperature measurement module can offer high-precision temperature measuring capability. Additionally, the TCD-104 offers automatic analysis result output, intelligent temperature data logging, and built-in over-temperature protection (highest Tin temperature, tinning time, heating rate, etc.).

SMD assembly manufacturing, PC board manufacturing, footwear manufacturing, food industry, pharmaceutical industry and any temperature measurement required industries.

LED Signaling. Status Report Data logger colour is yellow. Green for standard operation. Red for the error indicator. Measurement of Temperature. Channels 4 of the K-type sensor type. Range (-454°F to 2502°F): -270°C to 1372°C. Resolution 0.1ºC \sAccuracy ±0.5ºC. Logging System 450,000 records. USB Full-Speed Specification USB 2.0. Battery Usage Life Operating for more than 60 hours with heavy-duty AAA battery x 4 Power Consumption 0.06 W Max. Mechanical Dimensions: 104 x 169 x 21 millimetres (W x L x H). Operating temperatures range from -40 to +400°C.. 10 to 95% relative humidity, and non-condensing.

Ordering Information:

TCD-104/S400 CR 4-ch K type Thermocouple Data Logger Module for Portable Measurement up to 400℃. (RoHS)

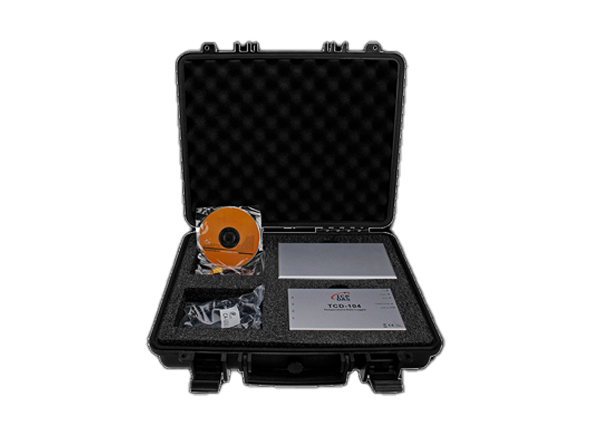

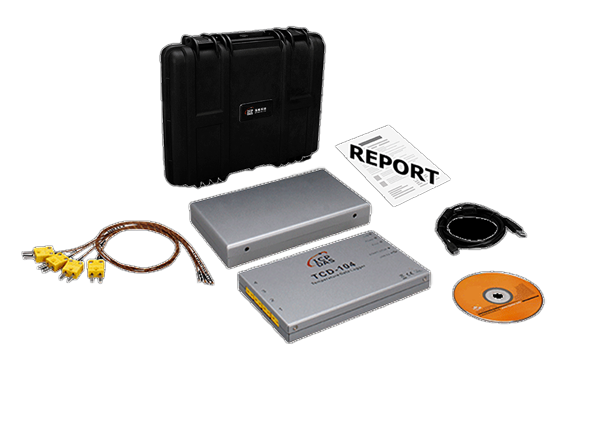

Includes thermal insulation box and software
