S19A-QM87/S24A-QM87

SKU 4640

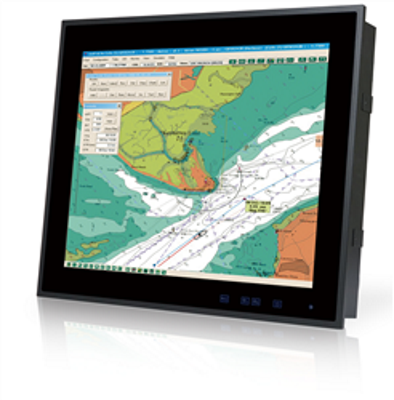

The S19A/S24A-QM87i series is a 19”/24” marine panel PC with Intel® Core™ i5-4400E processor and Intel® QM87 Express Chipset. The S19A/S24A-QM87i is preinstalled with 4 GB of DDR3 SO-DIMM and can accommodate up to 16 GB of DDR3 memory. Storage in the system is handled by two 2.5” SATA 6Gb/s SSD bays and the CFast card slot.

In addition, the S19A/S24A-QM87i features Intelligent Platform Management Interface 2.0 (IPMI 2.0) that helps lower the overall costs of server management by enabling users to maximize IT resource, save time and manage multiple systems. The S19A/S24A-QM87i supports IPMI 2.0 through the optional iRIS-2400 module.

  • 19”-24” Fanless Panel PC with 4th Generation Intel®Core™ i5 Dual-core Processor
  • -15°C ~ +55°C Wide Temperature and IP66 Protection with Flat-bezel Projected Capacitive Touchscreen
  • Excellent Visual Performance
    • Three independent displays
    • Full OSD function configuration
    • 0% ~ 100% full range dimming
    • 178°/178° wide viewing angles
    • Optical bonding improves visibility under bright light (optional)
  • Isolation Protection
    • RS-232/422/485 isolated serial ports
    • Isolated 18V ~ 36V DC input
    • 2 x Isolated CAN-bus 2.0B
  • iRIS Remote Management Module

S19A-QM87i-i5/PC/4G-R10: 19” 300cd/m² SXGA marine panel PC with Intel® Mobile Core™ i5-4400E 2.7GHz CPU, 2*2GB DDR3 RAM, projected capacitive touchscreen, isolated 18-36V DC, iRIS-2400 supported, R10.

S24A-QM87i-i5/PC/4G-R10: 24”300cd/m² FHD marine panel PC with Intel® Mobile Core™ i5-4400E 2.7GHz CPU, 2*2GB DDR3 RAM, projected capacitive touchscreen, isolated 18-36V DC, iRIS-2400 supported, R10.
