PUZZLE IN005

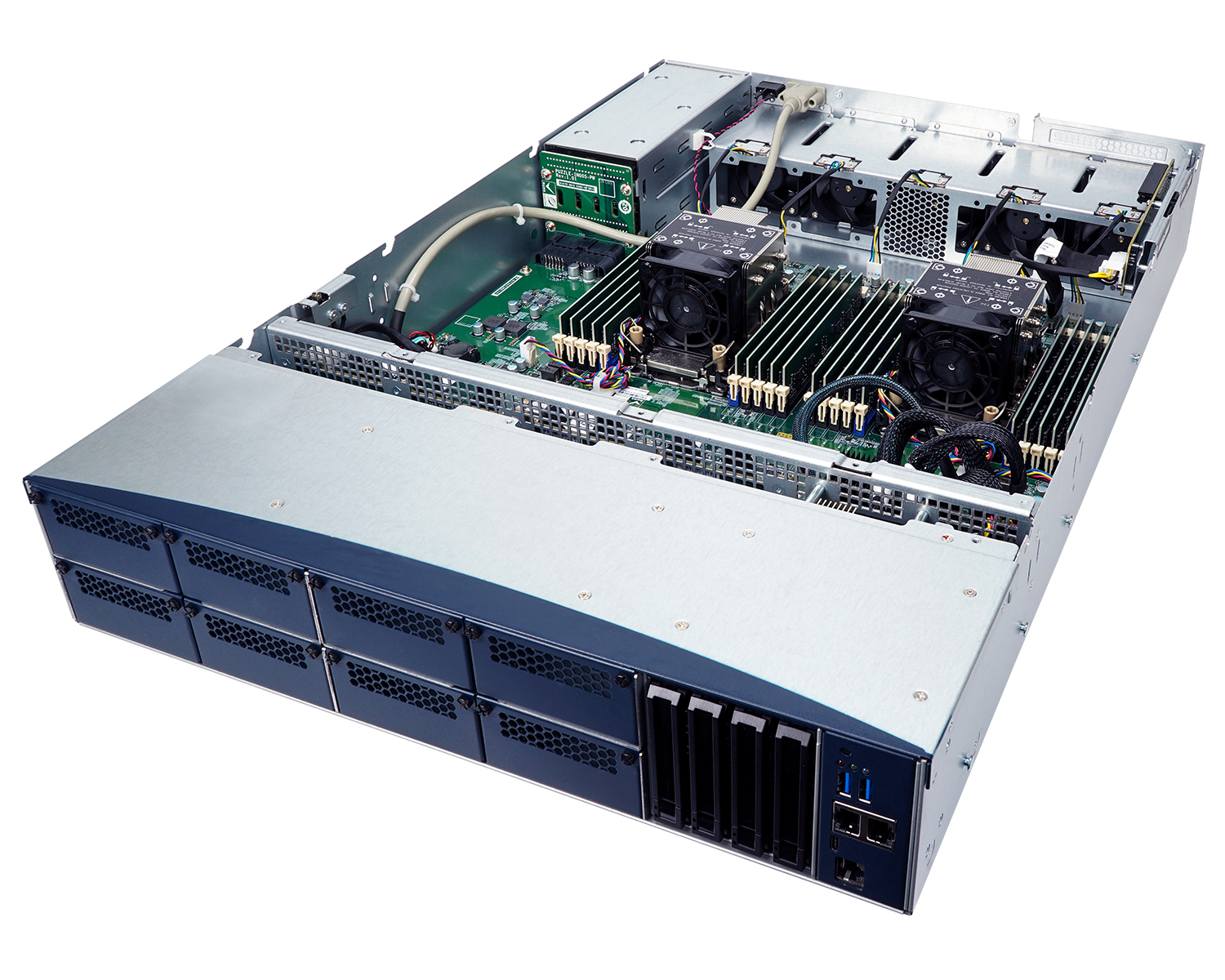

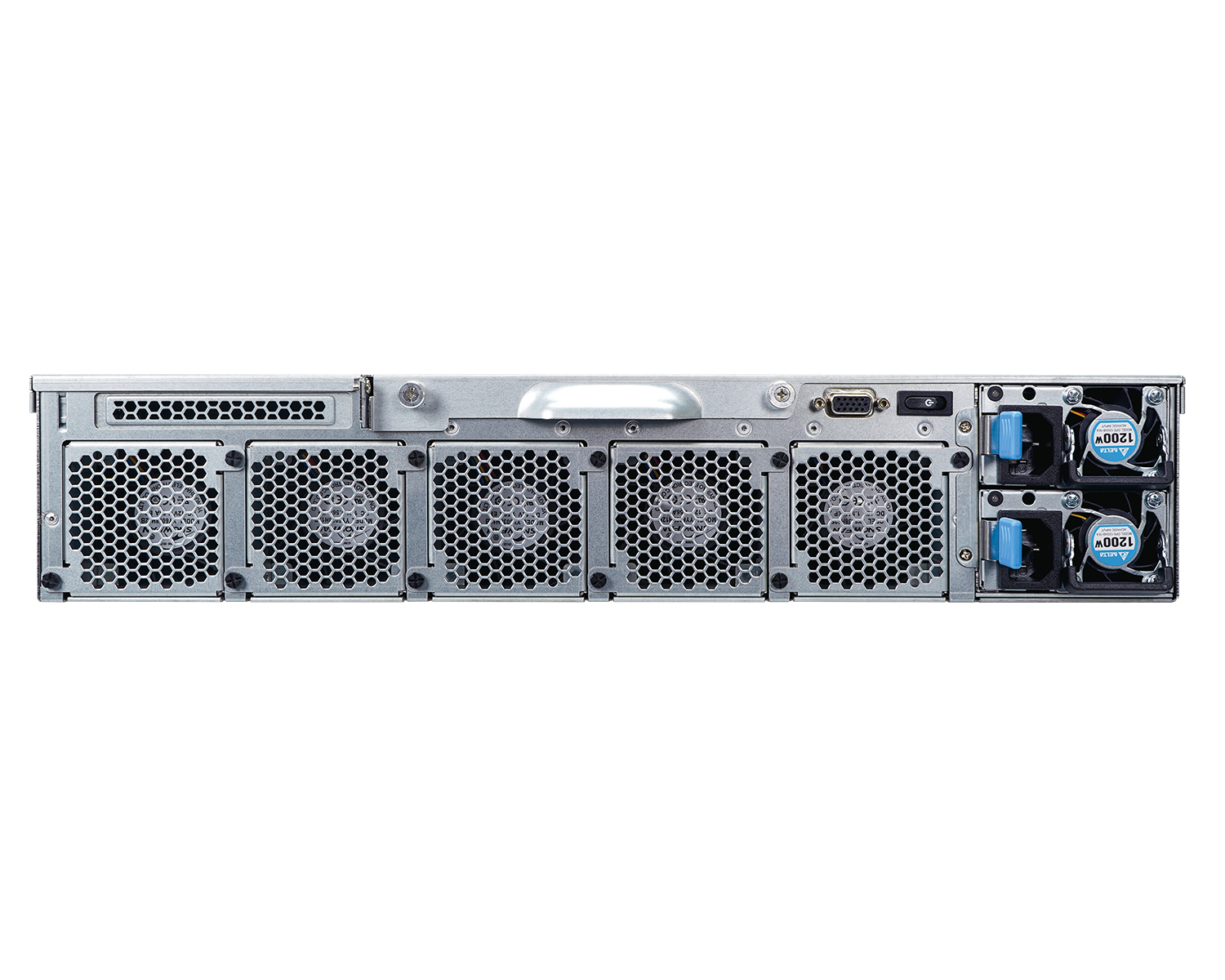

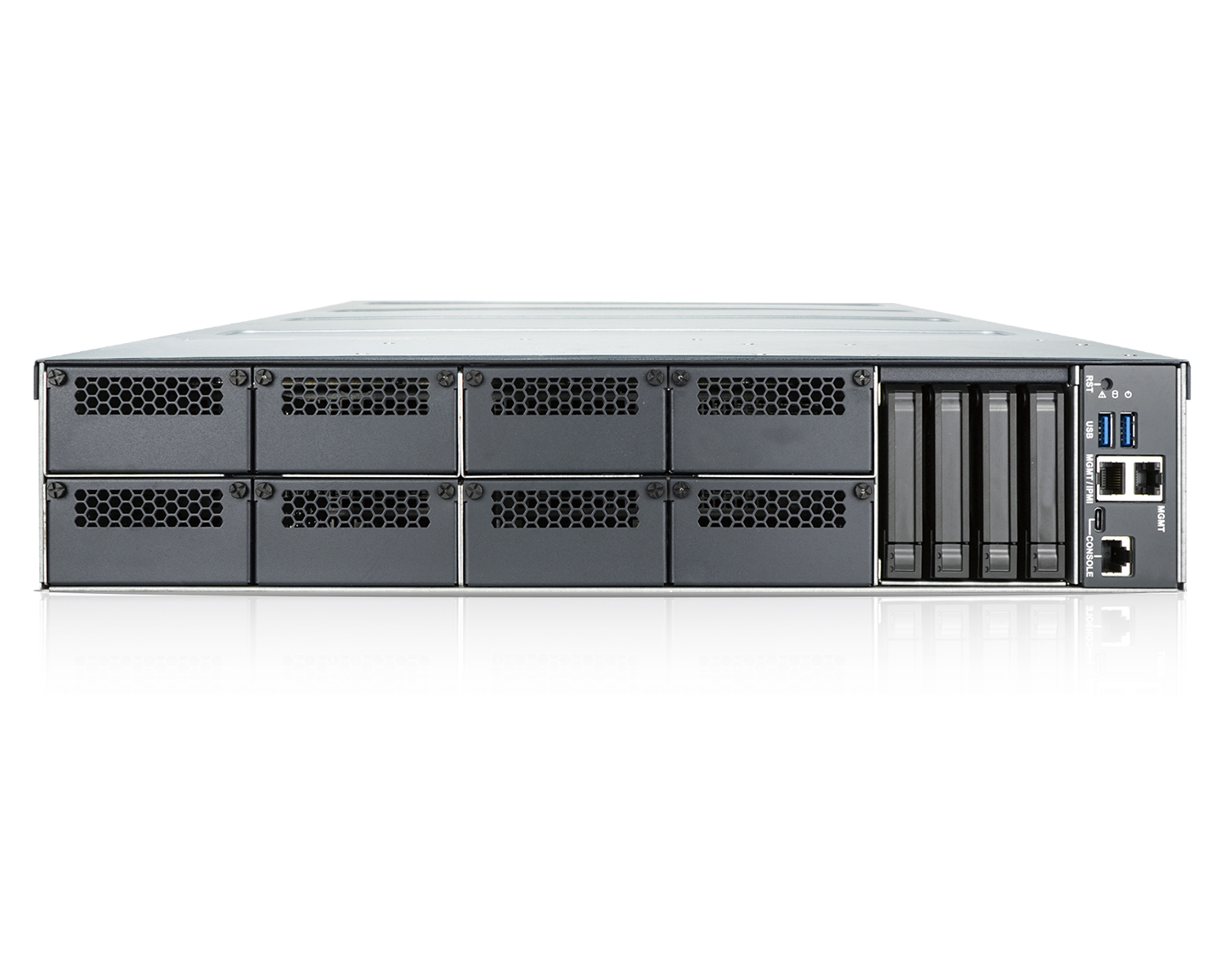

PUZZLE IN005, a 2U rackmount higher core counts network appliance, designed with two 3rd Gen. Intel® Xeon® Scalable processor platform in 10nm technology to offer unlimited computing performance and well throughput.

KEY FEATURES:

  • Dual Intel® Ice lake Xeon® Scalable Processors (up to 185W)
  • 20 x DDR4 R-DIMM / LR-DIMM Memory
  • 8 Network Module with PCIe Gen4 x8 Signal
  • Intel® Quick-Assist Technology
  • 4 x U.2(PCIe x4) 2.5″ SSD Compatible with SATA
  • 1+1 1200W CRPS Redundant Power Supply
  • 4+1 Hot-Swappable System Fans

PUZZLE-IN005-R-R10: 2U Rackmount Network Appliance support dual Intel® ice-lake-SP CPU, twenty DDR4 R-DIMM/LR-DIMM slots, and two 1GbE
(one support BMC control), eight PulM, one PCIe expansion, Redundant Power, without cooler, RoHS
