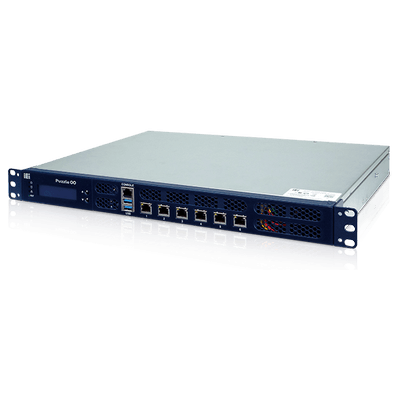

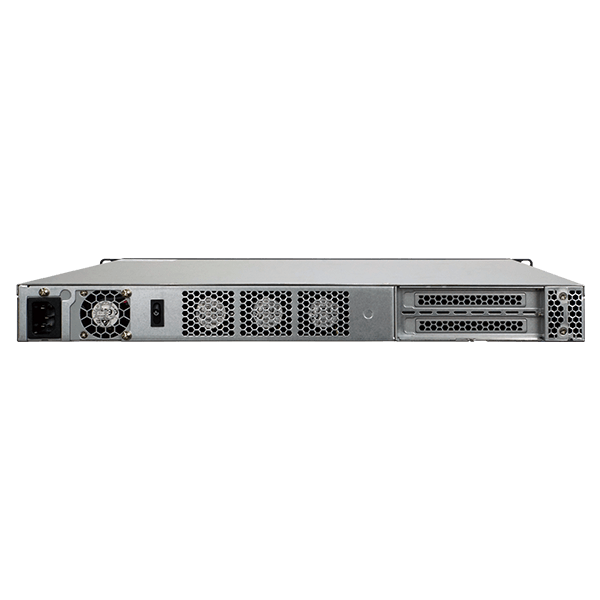

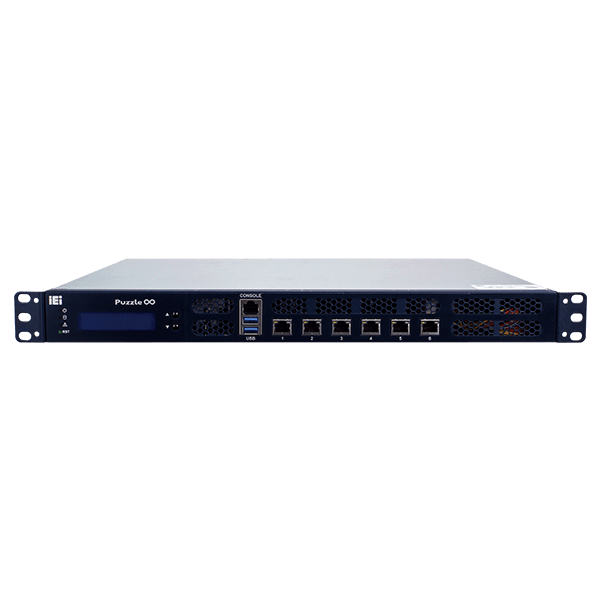

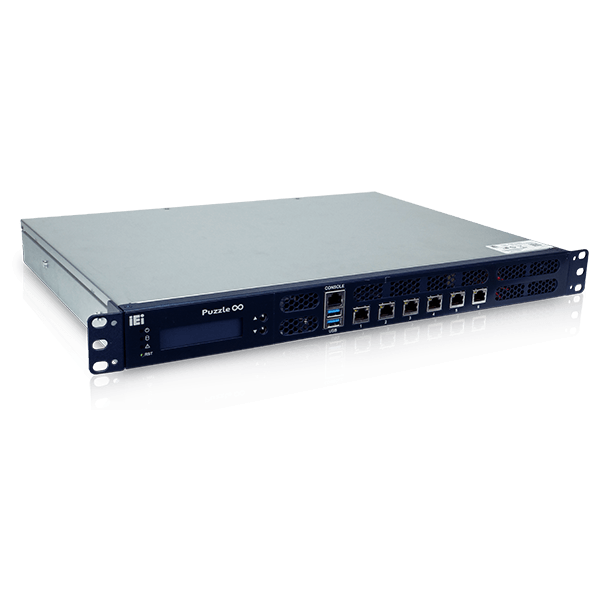

PUZZLE-IN002

IEI PUZZLE series is the next generation product of network appliance which includes a broad portfolio of x86- based and ARM-based network platform built with the latest generation Intel, AMD, Marvell, NXP or Cavium processors, and Aquantia, Intel, Broadcom, Mellanox network interface controllers. These products are built for proprietary network appliance and uCPE (Universal Customer Premise Equipment).

  • 8th Generation IntelCore. i7/i5/i3, Pentiumor Celeron Processor
  • Support 6 x GbE RJ45 via IntelI211
  • 2 x 288-pin DIMM, DDR4 2400MHz Non-ECC/RDIMM, up to 32GB
  • 1 x RJ45 Console, 2 x USB 3.0, LCM
  • 1 x 2.5” SSD/HDD Bay, 1 x M.2 A-Key (SATA, USB 3.0), 1 x PCIe mini card (PCIe , SATA)
  • Support PCIe x16



The signal of the one PCIe 3.0 x8 slots and one Networking Module slot (PCIe x8) directly connect to CPU instead of DMI 3.0 channel. By doing this, the PCIe 3.0 x8 add-on cards and high speed Networking Modules can run with lower latency and achieve complete AI card and Networking Module performance.

PUZZLE is about the uCPE consists of software virtual network functions (VNFs) running on a standard operating system hosted on an open server. An ideal uCPE deployment supports a multi-vendor multi-component construction and enables rapid development as well as open multi-vendor systems.

PUZZLE Finder can help users quickly develop environment and network applications, and allow them to perform PUZZLE system management, resource monitoring, version maintenance, software installation, software update and gaining information of CPU, memory, Internet, etc.

PUZZLE series are AI hardware ready system ideal for deep learning inference computing to help you get faster, deeper insights into your customers and your business.

PUZZLE-IN002-i3T/8G-R10: 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, 8GB DDR4, one 256GB SSD, six 1GbE , one PCIe x16 expansion, RoHS
PUZZLE-IN002-i3T-R10: 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, two DDR4 slots, and six 1GbE , one PCIe x16 expansion, RoHS
PUZZLE-IN002-PGT/8G-R10: 1U Rackmount Network Appliance with Intel® Gen8 Pentium® Gold G5400T processor, 8GB DDR4, one 256GB SSD, and six 1GbE , one PCIe x16 expansion, RoHS
PUZZLE-IN002-PGT-R10: 1U Rackmount Network Appliance with Intel® Gen8 Pentium® Gold G5400T processor, two DDR4 slots, and six 1GbE , one PCIe x16 expansion, RoHS
