PPC-F17D-ULT5

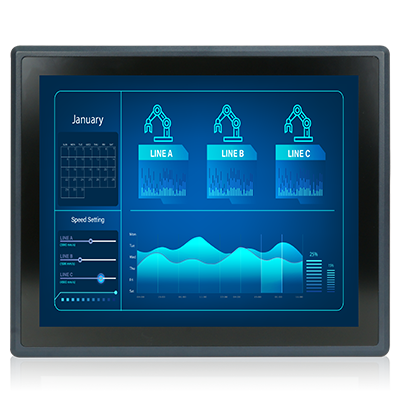

The PPC-FxxD-ULT5 series is a quad-core Intel® Core™ i5-8365UE / Celeron® 4305UE powered flat bezel touchscreen panel PC with a rich variety of functions and peripherals. It has a unique modular design to achieve high flexibility by assembling the FLEX series system with the LCD touchscreen module. The flat-bezel design is ideal for easy and simplified integration into various applications.

  • 17” Panel PC with 8th gen Intel® Whiskey Lake-U processors
  • Low power consumption and fanless design
  • IP66-rated front panel for water and dust resistance
  • Touch screen with anti-UV / anti-glare coating
  • Support PoE PD power
  • Support NVMe SSD

The Intel® Core™ i5-8365UE / Celeron® 4305UE is a System-on-Chip (SoC) that ensures optimal memory, graphics, and peripheral I/O support. The system comes with 4.0 GB of DDR4 SO-DIMM memory ensuring smooth data throughputs with reduced bottlenecks and fast system access.

One RS-232/422/485 serial port, one RS-232 serial port and four external USB 3.2 Gen 2 ports ensure simplified connectivity to a variety of external peripheral devices. Three RJ-45 Ethernet connectors provide the system with smooth connection to an external LAN. Moreover, two of the Ethernet connectors are capable to support PoE by installing the optional PoE module.

PPC-F17D-ULT5-i5/4G/PC-R10: 17″ 350 cd/m2 1280 x 1024 Panel PC with Intel® 14nm 8th Whiskey Lake Core- i5-8365UE (6M Cache, up to 4.10 GHz) TDP 15W on-board Processor (ULT), 4GB DDR4 RAM x1, 12VDC input, Projective capacitive touch window with AG, R10
PPC-F17D-ULT5-C/4G/PC-R10: 17″ 350 cd/m2 1280 x 1024 Panel PC with Intel® 14nm 8th Whiskey Lake Celeron® 4305UE (2M Cache, 2.0 GHz) TDP 15W on-board Processor (ULT), 4GB DDR4 RAM x1, 12VDC input, Projective capacitive touch window with AG, R10
