PPC-5150A-H61

SKU 2925

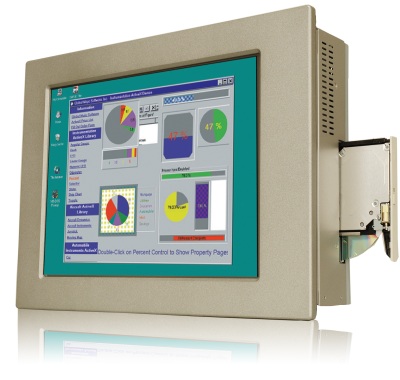

15″ Industrial Panel PC with Intel® Core™ i7/ i5/ i3, Pentium® and Celeron® Processor

Features

  • Intel® H61 Express Chipset with 2nd/3rd generation Intel® Core™, Pentium® and Celeron® processor
  • High brightness TFT-LCD panel with LED backlight
  • Multiple storage options: 2.5″ SATA HDD, CF slot, and mSATA
  • Dual Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets
  • Optional PCIe Mini 802.11b/g/n wireless module
  • Optional PCI / PCIe by 1 expansion slot
  • Optional Slim type CD-ROM drive bay
  • Robust aluminum front bezel and metal casing
  • IP 66 compliant front panel for PPC-5150A-H61
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery (Over 4GB storage capacity)
Specifications

LCD Size 15″
LCD Color 16.2M
Pixel Pitch 0.297 x 0.297
SBC Model POS-H61
Construction Front Panel Aluminum
Contruction Chassis Heavy-duty Steel
Mounting Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm Silver (Pantone 8001C)
Resolution 1024 (W) x 768 (H)
Contrast Ratio 700:1
Brightness (cd/m²) 400
Viewing Angle 140°/160°
Backlight MTBF 50,000
Memory Support two 204-pin DDR3 SO-DIMM slots (max. 16G)
CPU 2nd/3rd Generation Intel® Core™ Core™ i7/ i5/ i3, Petium® and Celeron® processor
Chipset Intel® H61
SSD CF Type II, mSATA
Drive Bay 1 x 2.5″ SATA HDD bay with anti-shook
CD-ROM Driver Bay Slim Type CD-ROM Bay
Audio Realtek ALC662 audio codec
Ethernet Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
I/O 4 x RS-232 COM Port
1 x RS-232/422/485 Port
2 x RJ-45 for LAN Port
4 x USB 2.0, 2 x USB 3.0 on rear
1 x VGA Port
1 x Audio (Line-out, MIC-in)
2 x SFP Fiber LAN
1 x Power Switch
1 x AT / ATX Switch
1 x PCI/PCIe Slot
Touch Screen Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
Touch controller: Realtek ALC662 audio codec
Expansion Slot Either 1 x PCI slot or 1 x PCIe slot, 1 x PCIe Mini card
Wireless 5-Wire Resistive Type with RS-232 interface
Power Supply AC Input ATX power supply
– P/N: 63000-ACEA622A166-RS
– 220W power supply
– Input: 90VAC~264VAC, 50/60Hz
– Output(max.): 3.3V@14A, 5V@16A, 12V@10A, -12V@0.8A
DC Input ATX power supply
– P/N: ACE-4520C-RS
– 200W power supply
– Input: 24 VDC(18~36 VDC)
– Output(max.): 3.3V@12A, 5V@12A, 12V@15.4A, -12V@0.5A
Operating Temp -20°C ~ 60°C
Storage Temp -30°C ~ 70°C
System Cooling Active with Fan
Vibration 10G acceleration part to part (11ms)
Shock IEEE 802.11b/g/n 2T2R mode WLAN via internal PCIe Mini card interface (optional)
Relative Humidity 10% to 95% (non-condensing)
Net / Gross Weight 7 Kg / 11 Kg
Dimension 410 x 309 x 110.5 mm
IP Level Front IP65 Compliant



Ordering Information

PPC-5150A-H61-P/R-R10 15” 400 cd/m² XGA Panel PC with POS-H61, Pentium Dual Core G6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2, Silver color, PSU ACE- A622A, touch screen, RoHS
PPC-5150AD-H61-P/R-R10 15” 400 cd/m² XGA Panel PC with POS-H61, Pentium Dual Core G6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color, PSU ACE- 4520C , touch screen, RoHS
PPC-5150A-H61-i3/R-R10 15” 400 cd/m² XGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, Silver color, PSU ACE- A622A, touch screen, RoHS
PPC-5150AD-H61-i3/R-R10 15” 400 cd/m² XGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, Silver color, PSU ACE- 4520C, touch screen, RoHS
PPC-5150A-H61-i5/R-R10 15” 400 cd/m² XGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, Silver color, PSU ACE- A622A, touch screen, RoHS
PPC-5150AD-H61-i5/R-R10 15” 400 cd/m² XGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color, PSU ACE- 4520C , touch screen, RoHS
  • High brightness TFT-LCD panel with LED backlight
  • Multiple storage options: 2.5″ SATA HDD, CF slot, and mSATA
  • Dual Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets
  • Optional PCI / PCIe x 1 expansion slot
  • Optional slim type CD-ROM drive bay
  • Robust aluminum front bezel and metal casing
  • IP 66 compliant front panel
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery (Over 4GB storage capacity)

See the PDF datasheet
