POC-500

The POC-500 is an ultra-compact embedded computer by Neousys Technology, featuring:

  • AMD Ryzen™ embedded V1605B/ V1807B series quad-core 15W/ 45W CPU
  • -25 °C to 70 °C rugged wide-temperature operation
  • Four Gigabit PoE+ ports with screw-lock
  • Four USB 3.0 ports with screw-lock
  • 2 2280 M key NVMe (Gen3 x2) socket for fast storage access
  • DP + VGA dual display outputs
  • Front I/O access and DIN-rail mounting design
  • MezIO™ compatible
  • See Our Vehicle Version: POC-551VTC

Please see the product PDF for more in-depth product specifications and do not hesitate to contact us if you have any questions.

  • AMD Ryzen™ embedded V1605B/ V1807B series quad-core 15W/ 45W CPU
  • -25 °C to 70 °C rugged wide-temperature operation
  • Four Gigabit PoE+ ports with screw-lock
  • Four USB 3.0 ports with screw-lock
  • 2 2280 M key NVMe (Gen3 x2) socket for fast storage access
  • DP + VGA dual display outputs
  • Front I/O access and DIN-rail mounting design
  • MezIO™ compatible



POC-500 series is the next generation ultra-compact embedded controller offering performances never-seen-before in this form factor. Featuring AMD Ryzen™ Embedded V1605B/ V1807B 4-core/ 8-thread processor, it delivers up to 3x times the CPU performance over previous POC series. GPU performance wise, it delivers an unheard of 3.6 TFLOPS in FP16 for an ultra-compact form factor embedded controller. Another amazing feat is that it manages to incorporate an M.2 2280 NVMe SSD (PCIe Gen3 x2) to support 2x times the disk read/ write speed over typical 2.5″ SATA SSDs.

POC-500 series continues the POC series ingenious DIN-rail mounting mechanical design and offers plenty of front-accessible I/Os. Measuring just 63 x 176 x 116 mm (2.5″ x 6.9″ x 4.6″), it has 4x PoE+ ports, 4x USB 3.0 ports and 4x COM ports. And best of all, all data ports come with screw-lock mechanism so you can be rest assured that cables are always secured. POC-500 series is available in two CPU variants, the V1807B (45W) variant is for high computing power demand and the V1605B (15W) variant is designed for rugged fanless operation.

The arrival of POC-500 series signifies a new breed of ultra-compact embedded controller; one with better I/O design, extraordinary ruggedness and significantly more CPU/ GPU oomph for versatile applications.

POC-515: AMD Ryzen™ embedded V1605B ultra-compact controller with 4x PoE+ ports, 4x USB 3.0 ports and MezIO™ interface

POC-516: AMD Ryzen™ embedded V1605B ultra-compact controller with 4x PoE+ ports, 4x USB 3.0 ports and MezIO-R12

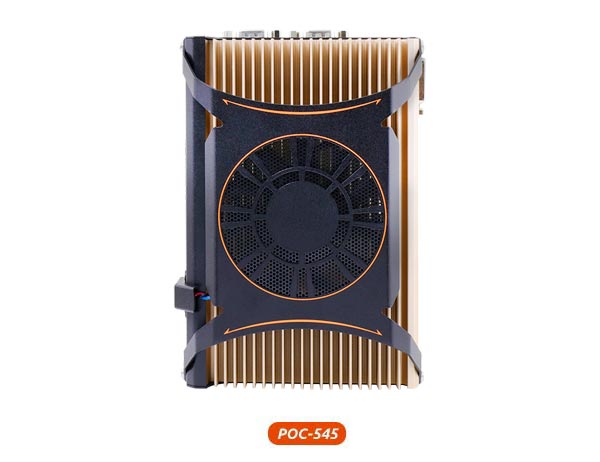

POC-545: AMD Ryzen™ embedded V1807B ultra-compact controller with 4x PoE+ ports, 4x USB 3.0 ports and MezIO™ interface

POC-546: AMD Ryzen™ embedded V1807B ultra-compact controller with 4x PoE+ ports, 4x USB 3.0 ports and MezIO-R12
