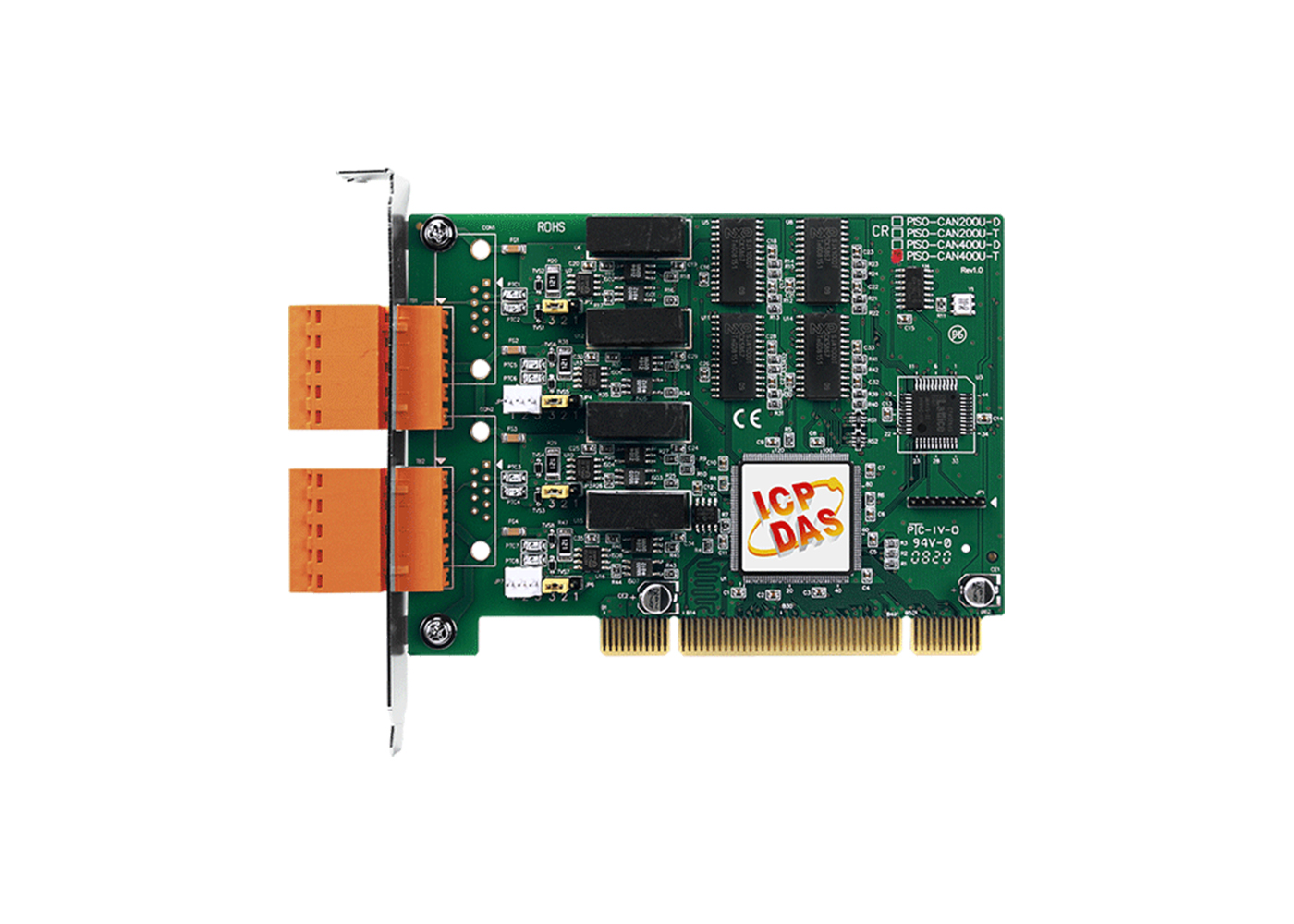

PISO-CAN400U-T

a 4-Port CAN Universal PCI board with 5-pin Screw Terminal Connectors.

Key Features:

  • Our Independent CAN Bus 2.0A/2.0B Communication Ports
  • Compatible with CAN Specification 2.0 Parts A and B
  • On-Board Optical Isolation Protection
  • Programmable Transfer Rate up to 1 Mbps
  • 2500 Vrms Photo Couple Isolation on the CAN Bus
  • Jumper Select 120Ω Terminal Resistor for Each Port
  • Direct Memory Mapping to the CAN Controllers
  • 33MHz 32bit 5V PCI Bus (V2.1) Plug and Play
  • Universal PCI Card, Supports Both 5V and 3.3V PCI Bus
  • We Have Verified to Driving 100 CAN Nodes at the Same Time
PISO-CAN400U-T     CR  4-port Isolated Protection CAN Universal PCI Card with 5-pin Screw Terminal Connector (RoHS)
  • ICP DAS
