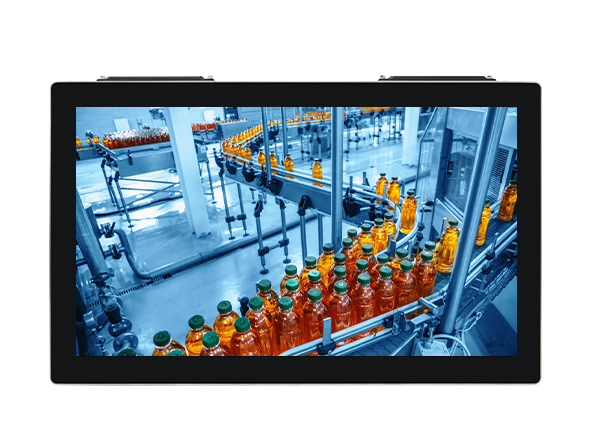

21.5” IP66/IP69K True Flat and Slim Design Stainless Steel Panel PC


Key Features:

  • 21.5″ New Generation Stainless Steel Panel PC
  • Intel Celeron J6412 Processors
  • True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)

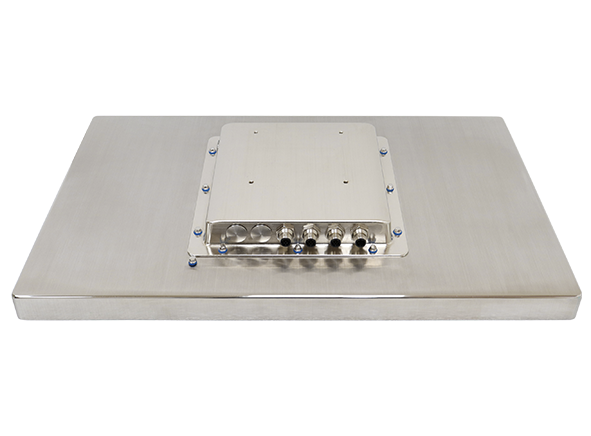

  • IP66/IP69K Rated with M12 Connectors
  • Ultra Slim Front Frame Design

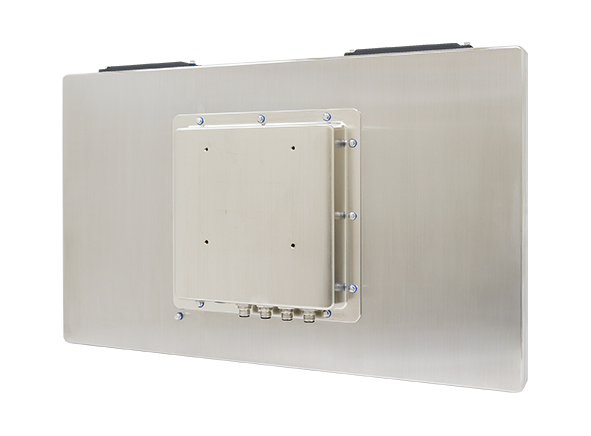

  • Special Hygienic Bolts on Rear Case
  • Waterproof Wireless Antenna Covers to Solve the Bend Damage and Easy to Clean
  • Support Ergonomic Versatile Mounting: VESA Mount 100 x 100 / Floor Stand / Swing ARM

ICP Electronics Australia is pleased to present APLEX’s PhanTAM-821BP/H. PhanTAM-821BP/H is a testament to the company’s commitment to providing versatile and durable industrial computing solutions. As an addition to the PhanTAM-8B series, this model shares many features with its counterpart, the PhanTAM-9C, which boasts an Intel 11th Gen. core i processor and was awarded the Taiwan Excellence 2024.

The PhanTAM-821BP/H is designed for environments requiring the highest hygiene standards, such as food and beverage processing, clean rooms, and pharmaceutical manufacturing. Constructed with food-grade stainless steel (SUS304/SUS316), it offers a robust yet lightweight design, featuring a true flat front bezel and an ultra-slim front frame.

A standout feature of the PhanTAM-821BP/H is its exceptional waterproofing capabilities. Rated IP66/IP69K, it can withstand high-pressure, high-temperature water jets, making it ideal for the rigorous cleaning processes in food automation. The inclusion of waterproof covers for wireless antennas, M12 connectors, and FDA-certified hygienic bolts ensures a watertight and seamless design, bolstering its resistance to bacteria, corrosion, and oxidation.

The PhanTAM-821BP/H is equipped with a variety of ports and expansion slots, including USB, LAN, COM, mini PCIe, and M.2 slots for Wi-Fi/Bluetooth and SSD storage. It also offers up to 32GB DDR4 system memory and optional RFID for hygienic, contactless operations.

Supporting a power input range of DC 9~36V and various mounting options (including VESA mount), this panel PC is versatile in installation. It runs on Windows 10 IoT ENT LTSB and Windows 11, ensuring compatibility with a wide range of applications.

Additionally, the PhanTAM series offers an optional explosion-proof film, enhancing screen durability and making it suitable for environments with extreme temperature fluctuations and intensive cleaning requirements. The PhanTAM-821BP/H, with its blend of ruggedness, hygiene-focused design, and technical versatility, is an ideal solution for industries prioritizing cleanliness and efficiency in challenging environments.

Ordering Information


21.5” IP66/IP69K True Flat and Slim Design Stainless Steel Panel PC
