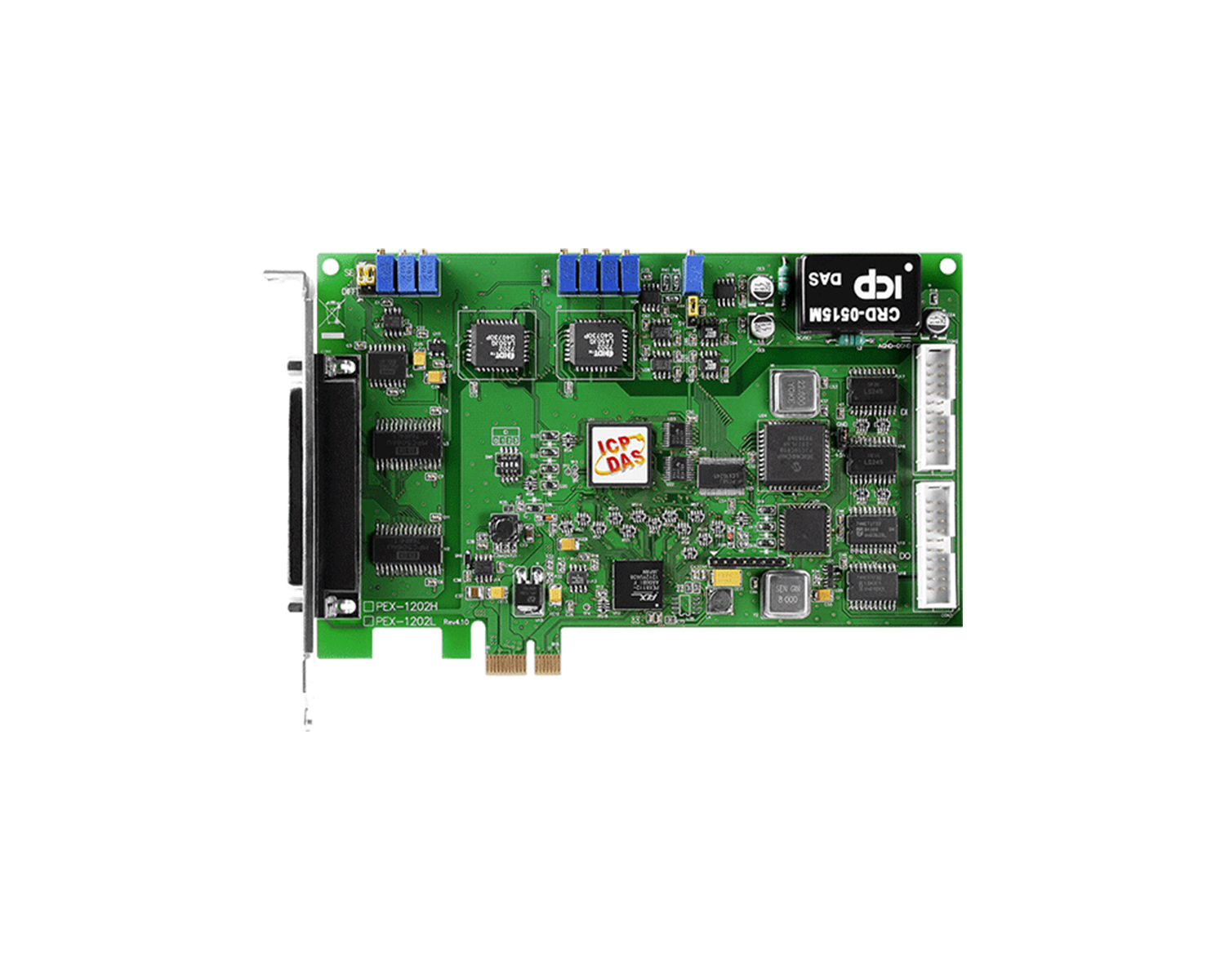

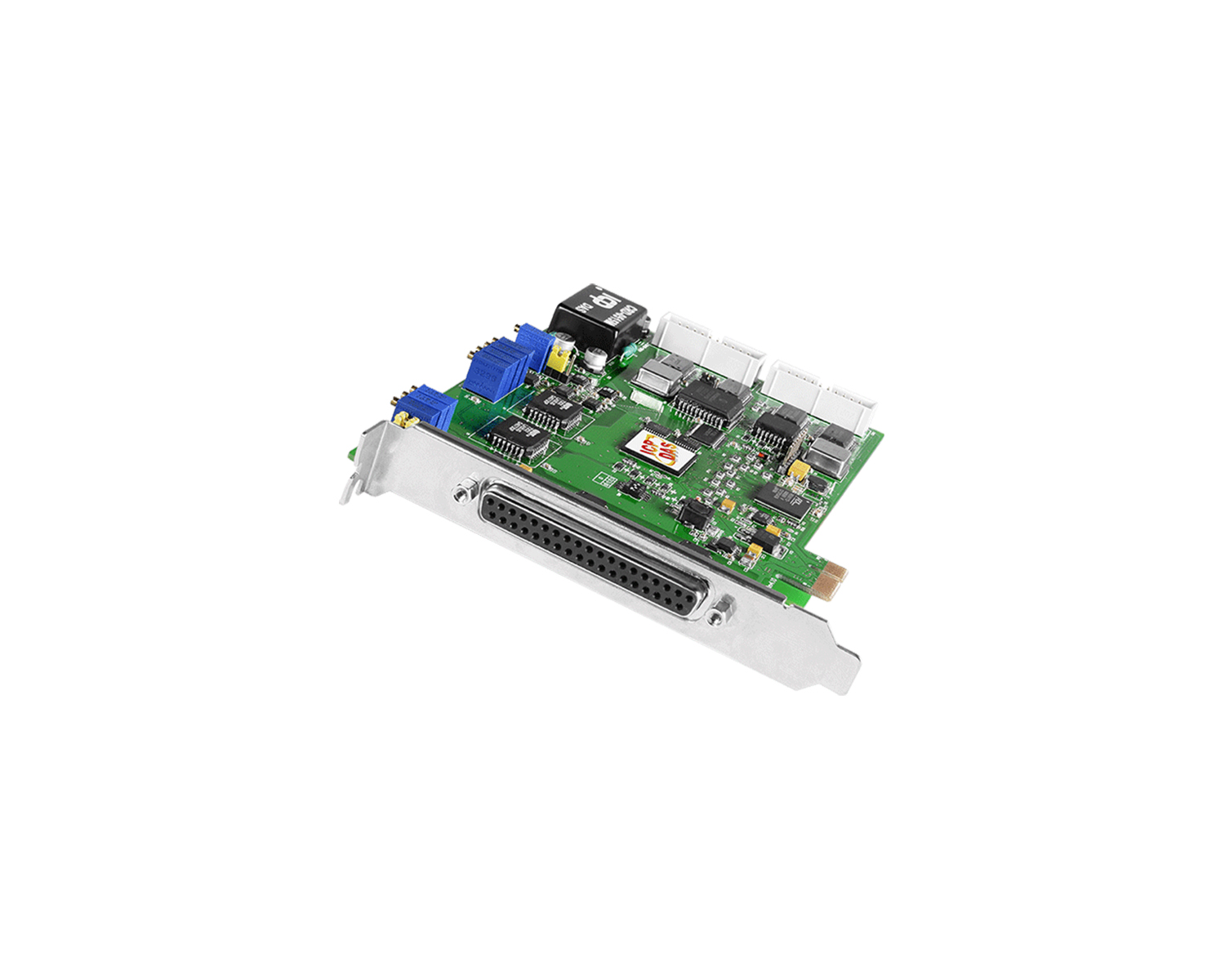

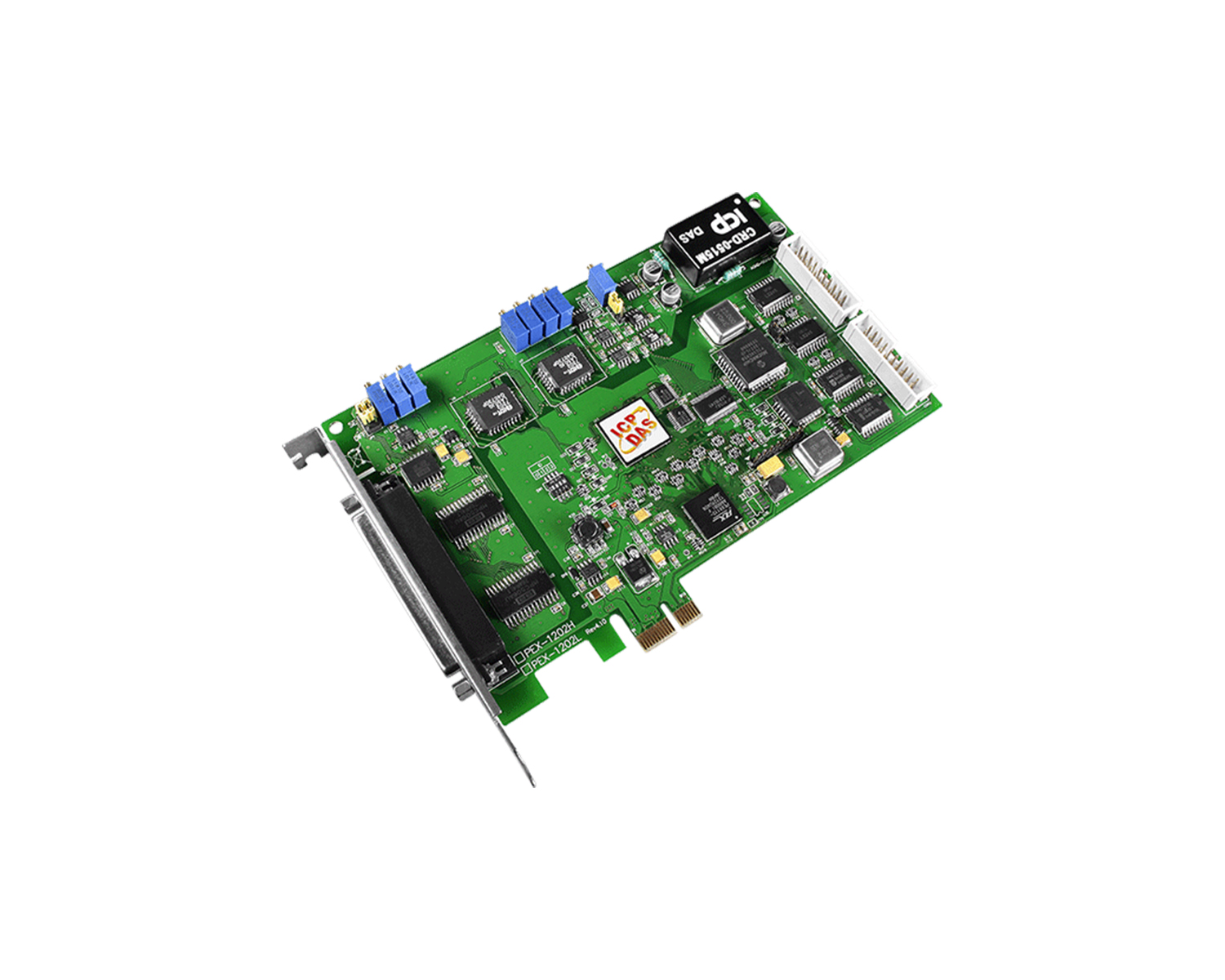

PEX-1202H

It is a family of high-performance data acquisition boards. They feature a continuous A/D acquisition function of up to 44 kHz for high gain under DOS and offer two 12-bit D/A output channels, 16 DI channels and 16 DO channels.

Key Features:

  • PCI Express x1 Interface
  • 16-channel 5 V/TTL Digital Input
  • 16-channel 5 V/TTL Digital Output
  • Pull-High/Pull-low Jumpers for DI Channels
  • 12-bit, 32 Single-Ended/16 Differential Analog Input Channels
  • Three External Triggers: Pre-Trigger, Middle-Trigger, Post-Trigger
  • 110 or 44 kS/s AD Sampling Rate
  • Supports Card ID (SMD Switch)
PEX-1202H     CR  PCI Express, 44 kS/s, 32-ch, 12-bit Multi-function Board (1 K word FIFO) (RoHS)
Includes one CA-4002 D-Sub connector
