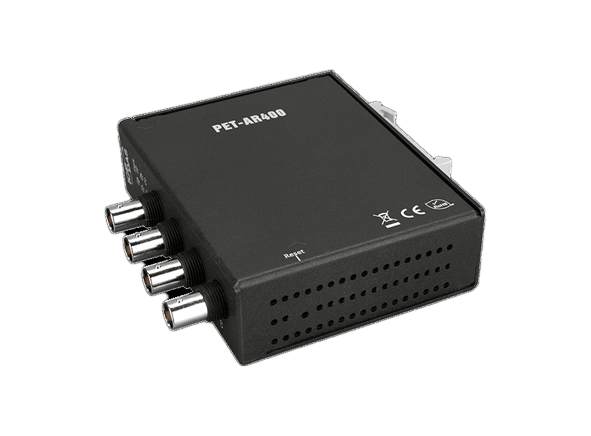

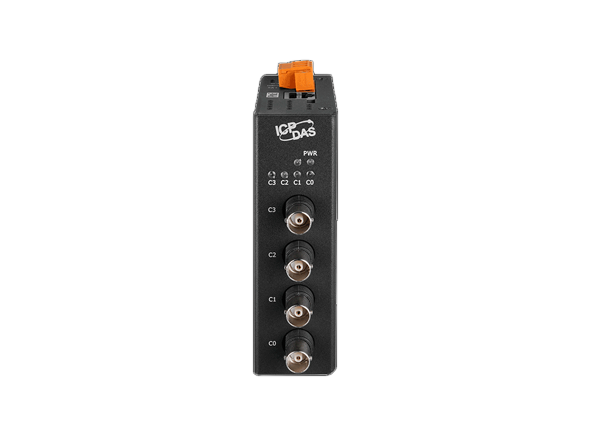

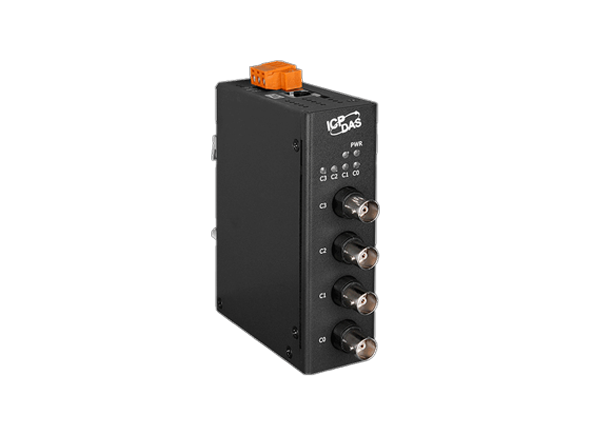

PET-AR400

PoE Ethernet High Speed Data Acquisition Module, 4-ch Accelerometer (IEPE) Inputs



KEY FEATURES:

  • 4 differential IEPE input, Excitation Current 4 mA
  • 24-bit ADC
  • Sample Rate up to 128 kS/s (one channel)
  • LED indicator support
  • Metal shell and 4 kV ESD protection
  • A/D Trigger Mode : Software Trigger/Analog Threshold Trigger
  • Option for External Power Supply or POE Supply

ICP Electronics Australia is proud to introduce ICP DAS PET-AR400. ICP DAS’s PET-AR400 is a powerful PoE Ethernet high-speed data acquisition module that offers advanced features for accurate and efficient data collection. With its 4-channel accelerometer (IEPE) inputs, this module is designed to cater to various applications requiring precise measurement and analysis.

The PET-AR400 module boasts 4 differential IEPE inputs with an excitation current of 4 mA, ensuring reliable and consistent sensor connectivity. Equipped with a 24-bit ADC, it delivers high-resolution data acquisition for detailed analysis. The module supports real sample and hold functionality, allowing users to capture data accurately at a sample rate of up to 128 kS/s for a single channel.

The PET-AR400 provides multiple data transmission modes, including continuous and N data sample modes. It also offers versatile trigger options, such as software-triggered and analog threshold-triggered modes, giving users flexibility in acquiring data based on specific requirements.

To simplify integration and maximize compatibility, the PET-AR400 is supported by various software environments. It is compatible with Windows 7/8/10 and Linux operating systems and offers software development kits (SDKs) and demos for Microsoft VC, C#, and VB.NET. Additionally, it provides a NI LabVIEW Toolkit and demo for Windows, as well as a C/C++ library and demo for Linux.

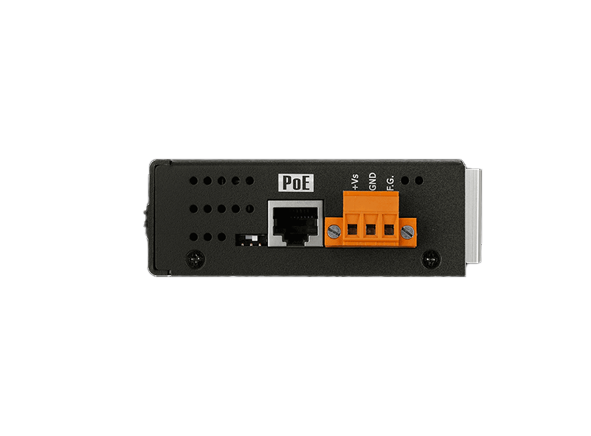

With its built-in 10/100BASE-T Ethernet port, the PET-AR400 enables seamless data transfer over a network. The module also offers the option for external power supply or Power over Ethernet (PoE) supply, providing flexibility in power configuration.

The PET-AR400 is ideal for applications such as vibration measurement and analysis, machine condition monitoring, and predictive maintenance. Its robust features and reliable performance make it suitable for a wide range of mobile and portable measurement applications, as well as precision signal measurement.

In conclusion, ICP DAS’s PET-AR400 PoE Ethernet high-speed data acquisition module with 4-ch accelerometer (IEPE) inputs offers advanced features, precise data acquisition, and versatile software support. With its wide range of applications and reliable performance, it is a valuable tool for engineers and researchers in various industries.

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PET-AR400     CR  PoE Ethernet High Speed Data Acquisition Module, 4-ch Accelerometer (IEPE) Inputs (RoHS)
