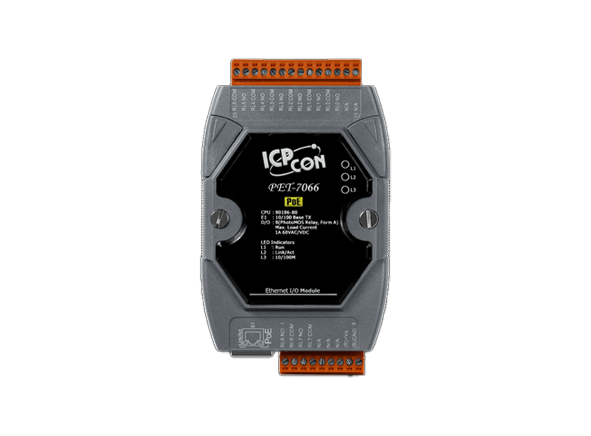

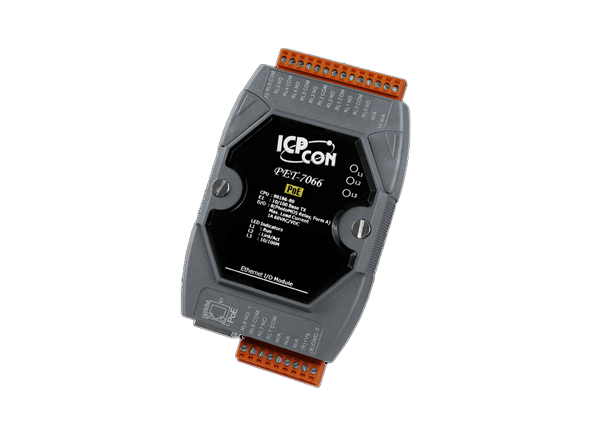

PET-7066

Ethernet I/O Module with 8- channel PhotoMOS Relay Output



KEY FEATURES:

  • Embedded web server for easy configuration and commissioning by using a web browser
  • Communication Security
  • Support both Modbus TCP and Modbus UDP Protocols
  • Built-in I/O
  • PhotoMOS Relay: 8 Channels
  • I/O Pair Connection
  • Dual Watchdog
  • IEEE 802.3af-compliant Power over Ethernet (PoE)

ICP Electronics Australia is proud to introduce ICP DAS’s PET-7066. An Ethernet I/O module with 8 PhotoMOS Relay channels is called PET-7066. It has an integrated web server that enables configuration, I/O monitoring, and I/O control with the use of a standard web browser.



Through the Ethernet network, the PET-7066 module can be remotely controlled using the Modbus TCP/UDP protocol. Therefore, the modules integrate effectively with HMI, SCADA, PLC, and other industrial control software platforms.



The IEEE 802.3af Power-Over-Ethernet (Class 1) requirements are supported by PET-7066. The network cable can be used to supply power to network devices that comply with IEEE 802.3af PoE.

Order Information:

PET-7066 CR

PoE Ethernet I/O Module with 8-ch PhotoMOS Relay (RoHS)

  • ICP DAS
