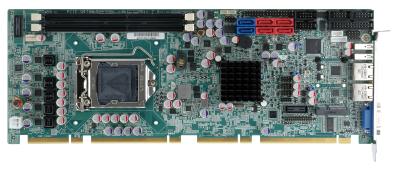

PCIE-Q670-R20

SKU 4176

The PCIE-Q670 Series PICMG 1.3 CPU card is a Socket LGA1155 32nm Intel® Core™ i3/i5/i7/Pentium®/Celeron® processor platform that supports two 240-pin 1066/1333 MHz dual-channel DDR3 DIMM modules up to 16.0 GB.

The PCIE-Q670 Series supports two GbE interfaces through the Intel® 82579 Ethernet PHY (with Intel® AMT 7.0 support) and the Intel® 82583V Ethernet controller.

See the Product PDF Datasheet for Full Specifications.

  • PICMG 1.3 full-size graphics grade solution
  • LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors supported
  • Up to 16 GB 1333 MHz dual-channel DDR3 SDRAM
  • Supports dual independent display by VGA and DVI-D (DVI model)
  • Supports PCIe Mini expansion
  • Intel® PCIe GbE with Intel® AMT 7.0 support
  • Supports SATA 6Gb/s
  • Supports RAID function via SATA 6Gb/s and SATA 3Gb/s
  • TPM V1.2 hardware security provided by the TPM module
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery

PCIE-Q670-R20: Full-size PICMG 1.3 CPU card supports LGA1155 32nm Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® Q67, DDR3, VGA, dual Intel® PCIe GbE, SATA 6Gb/s, PCIe Mini, HD Audio and RoHS

PCIE-Q670-DVI-R20: Full-size PICMG 1.3 CPU card supports LGA1155 32nm Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® Q67, DDR3, DVI-D, dual Intel® PCIe GbE, SATA 6Gb/s, PCIe Mini, HD Audio and RoHS
