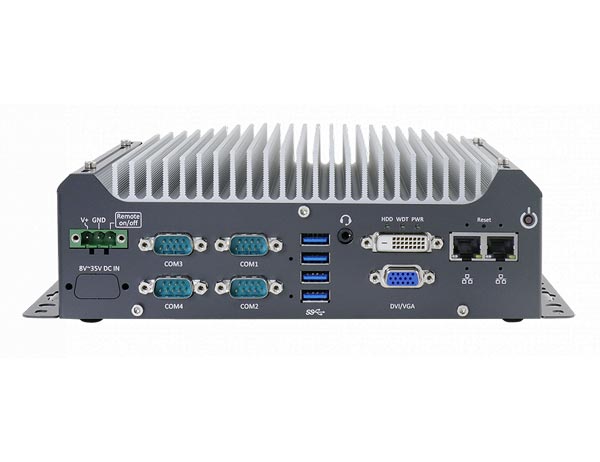

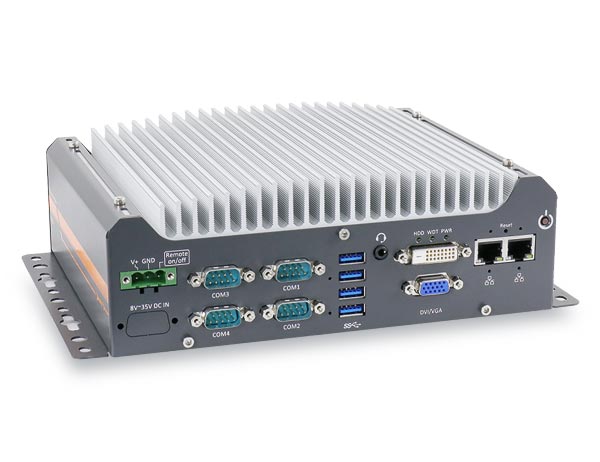

Nuvo-7505D is a cost-effective, compact and yet powerful fanless embedded computer with a 255 x 173 x 76 mm footprint. Powered by an Intel® 9th/ 8th-Gen Core™ hexa/ octa core CPU, it offers more than 50% computation performance improvement over the previous generation.

  • Compact 255 x 173 x 76 mm footprint
  • Intel® 9th/ 8th-Gen Core™ 35W LGA1151 CPU
  • Rugged, -25°C to 60°C fanless operation
  • 2x GbE and 4x USB 3.1 Gen1
  • 6x COM ports, isolation on ports 1~ 4
  • VGA + DVI dual display outputs
  • Accommodates one 3.5″ or 2.5″ HDD/ SSD
  • 8-CH isolated DI and 8-CH isolated DO

Nuvo-7505D: Intel® 8th/ 9th-Gen Core™ i7/i5/i3 compact fanless embedded computer with isolated DIO, isolated COM and 2x GbE

Optional Accessories
PA-120W-OW: 120W AC/ DC power adapter 20V/ 6A; 18AWG/ 120cm; cord end terminals for terminal block, operating temperature : -30 to 70 °C

DINRAIL-31: DIN-rail mounting assembly for Nuvo-7501 series
