NANO-CV-D25501/N26001

SKU 4215

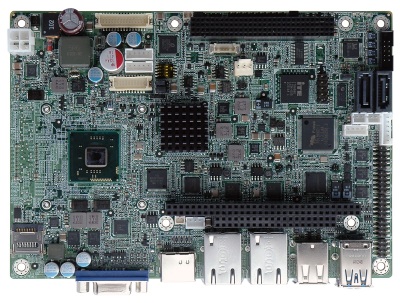

The NANO-CV-D25501/N26001 EPIC motherboard is an IntelⓇ Atom™ D2550/N2600 processor platform that supports one 1066 MHz or 800 MHz DDR3 SO-DIMM memory. The NANO-CV-D25501/N26001 supports VGA/HDMI display output and comes with two LVDS connectors supporting 24-bit or 18-bit LVDs screens. Maximum six USB ports (two USB 3.0, four USB 2.0), two SATA 3Gb/s connectors, one PCIe Mini card slot, one microSD card slot, four COM ports, and one audio connector provide flexible expansion options.

  • EPIC form factor with Intel® D2550/N2600 dual-core proccessor supporting DDR3/DDR3L (1.35V) memory
  • Wide range 9V ~ 28V DC input design
  • Flexible VGA, dual LVDS and HDMI with dual-display support
  • Supports PC/104-Plus and PCIe Mini card slot compatible with mSATA SSD storage
  • Complete I/O with six USB, two SATA 3Gb/s, four COM and audio
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery

NANO-CV-D25501-R10: EPIC SBC with Intel® Atom™ D2550 1.86GHz, DDR3, VGA/ HDMI/dual LVDS, dual GbE, USB 3.0, mSATA, SATA 3Gb/s, Audio, RoHS

NANO-CV-N26001-R10: EPIC SBC with Intel® Atom™ N2600 1.6GHz, DDR3, VGA/HDMI/ dual LVDS, dual GbE, USB 3.0, mSATA, SATA 3Gb/s, Audio, RoHS

NANO-CV-N28001-R10: EPIC SBC with Intel® Atom™ N2800 1.86GHz, DDR3, VGA/ HDMI/dual LVDS, dual GbE, USB 3.0, mSATA, SATA 3Gb/s, Audio and RoHS (by project support, MOQ 100pcs / lot)
