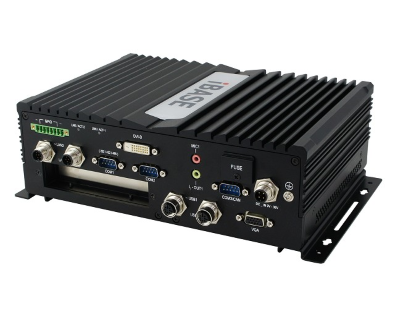

MPT-7000R

SKU 4778

The EN50155/EN45545 certified fanless railway computer system is powered by a 2.6GHz 7th/6th Generation Intel® Core™ i7-6600U processors. Purposely built for various rolling stock applications such as train control and management, passenger information, entertainment and communications, and surveillance, the rugged MPT-7000R computing solution provides an optimal combination of high performance with low power consumption. It is equipped with ruggedized, lockable M12 connectors for firm I/O connections in the course of train travel and silently operates at temperatures from -20°C to +55°C.

  • EN50155 certified
  • Fanless box PC for railway application
  • Robust M12 connection for dual GbE, USB and power input
  • Dual SIM sockets support WWAN redundancy
  • Two Removable 2.5” device bay and CFast socket
  • Rich I/O interfaces for wireless, SSD, GPS, WWAN and add-on card expansion
  • Ignition power control
  • Wide-range voltage GPIO interface
  • One PCI-E (x4) expansion

MPT-7000RSM: MPT-7000R with MBT-7001R (Intel i7-6600U) w/ 2x 4GB DDR4-2133, 2x SSD bay, No PSU, No storage (RoHS) 24V DC

MPT-7000RHVSM: MPT-7000R with MBT-7001R (Intel i7-6600U) w/ 2x 4GB DDR4-2133, 2x SSD bay, No PSU, No storage (RoHS) 72V/110V DC

Options


M12-PWR-Cable-1: 120CM M12 Power Cable For MPT Series / Lead Only

M12-USB-Cable-1: 300CM M12 to One USB Receptacle Cable For MPT Series

M12-RJ45-Cable-1: 300CM M12 to One RJ45 Jack Cable

Fuse-HV: Fuse for HV version
