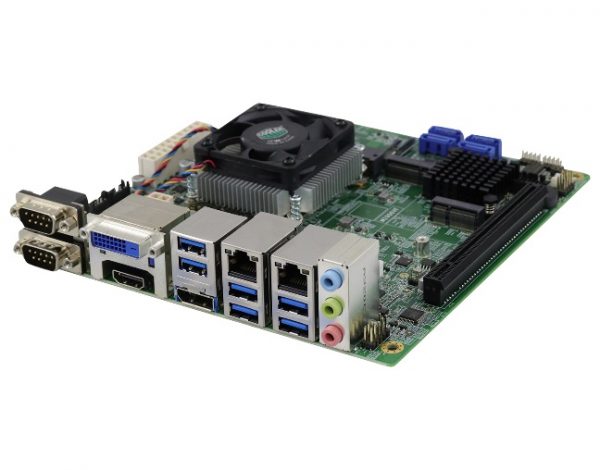

MI996

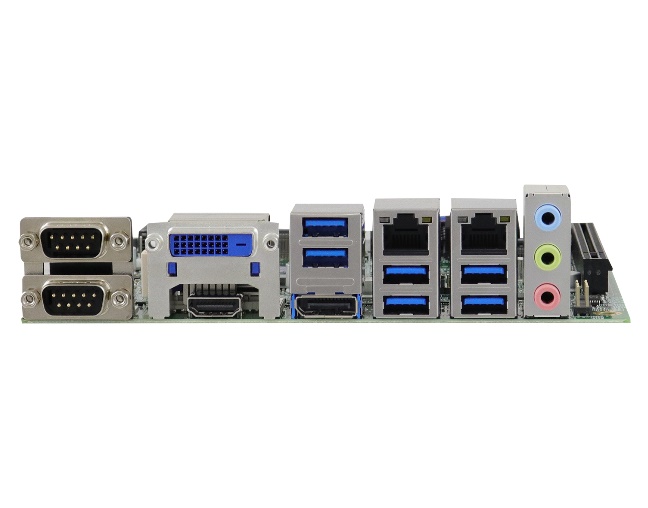

The compact MI996 is suitable for space-constrained applications and packs powerful functionality into a compact Mini-ITX form factor (170mm x 170mm). Enhanced I/O connectivity and expansion comprises six USB 3.1, four USB 2.0, four serial ports, four 4x SATA III, a Mini PCI-E, as well as two M.2 slots for NVMe storage and CNVi WiFi or Bluetooth connections. It features two Gigabit LAN and up to 32GB of DDR4-2666 SO-DIMM memory (ECC and non-ECC) for high-performance computing.

  • Onboard 9th Gen Intel® Xeon® E / Core™ i7/i5/i3 / Celeron® Processors
  • 2x DDR4 SO-DIMM Sockets, Max. 32GB
  • Supports eDP, HDMI (2.0a) / DVI-D and DisplayPort
  • 6x USB 3.1, 4x USB 2.0, 4x COM, 4x SATA III
  • 1x PCI-E (x16), 1x Mini PCI-E, 2x M.2
  • Watchdog Timer, Digital I/O, iAMT (11.6), TPM (2.0), iSMART, vPRO (MI996VF Series)

MI996VF-X28: FCBGA1440 Intel® CM246/ Xeon® E-2276ME Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), RAID, vPro, iAMT (11.6), iSMART (3.8), CPU cooler on board
MI996VF-9850: FCBGA1440 Intel® QM370/ Core™i7-9850HE Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), RAID, vPro, iAMT (11.6), iSMART (3.8), CPU cooler on board
MI996VF-9400: FCBGA1440 Intel® QM370/ Core™ i5-9400H Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), RAID, vPro, iAMT (11.6), iSMART (3.8), CPU cooler on board
MI996EF-9100: FCBAG1440 Intel® HM370/ Core™ i3-9100HL Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), EuP/ErP, CPU cooler on board
MI996EF-4930: FCBAG1440 Intel® HM370/ Celeron™ G4930E Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), EuP/ErP, CPU cooler on board
