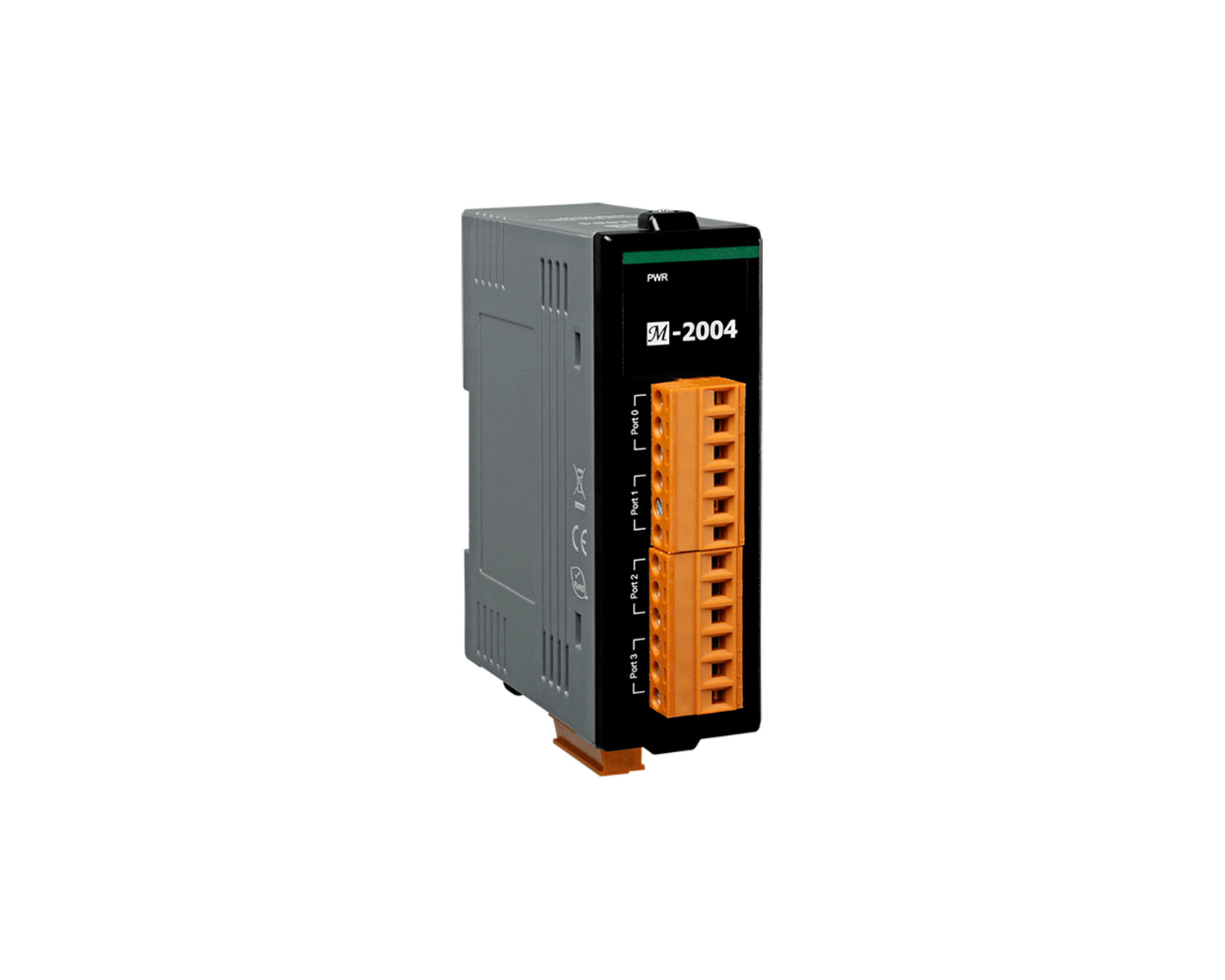

M-2004

4-port Digital Temperature Sensor Module with Daisy-Chain Wiring. The M-2004 is a digital temperature sensor module that provides four ports for 2- or 3 wire DS18B20 digital temperature sensor input.

KEY FEATURES:

  • 4-Port DS18B20 Sensor Input Module
  • 2/3-wire DS18B20 Wire Connection
  • Max 20 Sensors per Port
  • Distance of 100 m per Port When Using Daisy-Chain Wiring
  • Measures Temperatures from -55 to +125°C
  • ±0.5°C Accuracy from -10 to +85°C
  • 4 kV ESD Protection
  • 3000 VDC Intra-Module Isolation, Field to Logic
M-2004     CR  4-port DS18B20 Temperature Sensor Module using the DCON and Modbus Protocols (RoHS)
  • ICP DAS
