LP-8×81

SKU 2863

LinPAC-8×81 is the second generation PAC from ICP DAS and is equipped with a LX800 CPU (500 MHz) running a Linux 2.6.33 operating system, various connectivity (VGA, USB, Ethernet and RS-232/485) and 0/3/7 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K series).

User’s programs can be saved in external storage device, such as CF Card or USB mass storage device. LinPAC SDK is provided for users to develop LinPAC I/O applications rapidly and easily when I-7000/8000/87k series I/O modules are used in the LinPAC. Users can develop LinPAC applications by using GNU C Language. In the meanwhile, all kinds of servers and functions built-in make the LinPAC more powerful and users will be able to operate LinPAC to achieve their own project smoothly. With LP-8×81 series, users can achieve the redundancy function and it will make the whole control system safer.

  • [Development Environment]
    LinPAC SDK:
    ICP DAS provides the library file － libi8k.a which includes all the functions of the I-7000/8000/87k series modules. Users can develop LinPAC-8×81 Applications easily by GNU C Language.
  • [Built-in Server]
    Web Server: Through these servers, users active web pages can be placed in the LinPAC and make LinPAC be a Web Site.
    Telnet Server, SSH Server: Through these servers, users can remote control and transfer files with LinPAC by encrypting mode.
  • [Security]
    Unique Serial Number: As soon as “Unique Serial Number” added in users’ program, then users’ program will be locked for this LinPAC.
  • [Interpreter]
    Perl, PHP: The program written by Perl and PHP interpret language can be also executed in the LinPAC.
  • [GUI]
    GTK+ Library: Users can write LinPAC GUI programs by using GTK+ library.
  • [Other]
    Dual Watchdog Timer
    Built-In Flash Disk (4 GB)
    Dual Battery-Backup SRAM (512 KB)
    There are one resolution mode supported in the LinPAC.

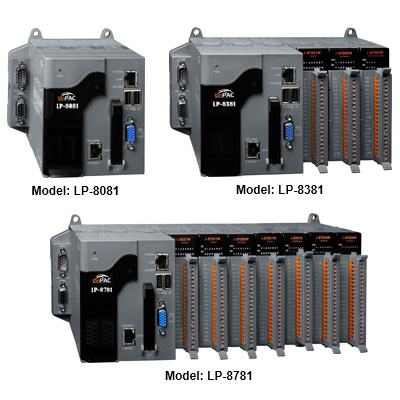

LP-8081: Standard LinPAC-8000 with 0 I/O slots ( English version of OS )

LP-8381: Standard LinPAC-8000 with 3 I/O slots ( English version of OS )

LP-8781: Standard LinPAC-8000 with 7 I/O slots ( English version of OS )
