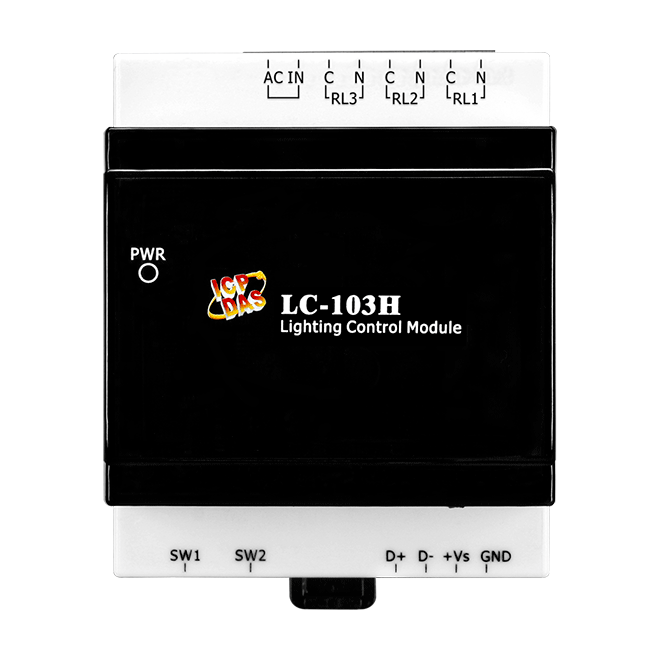

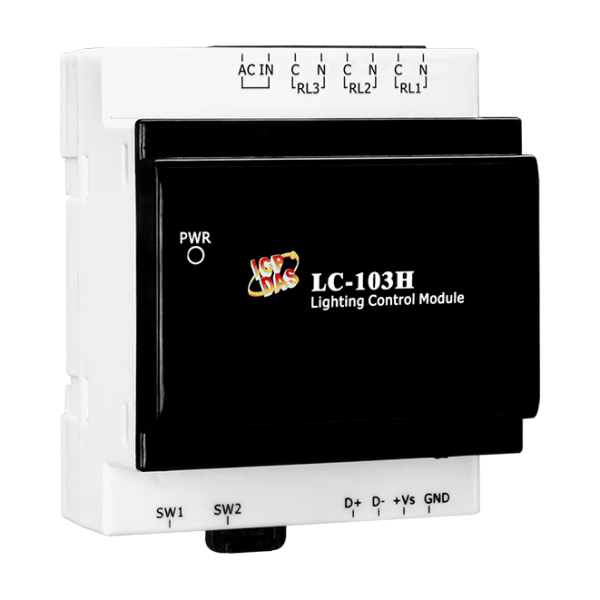

LC-103H

The LC-103H is an easy-to-use lighting control module that requires no specialist skills to install and operate, and no software is needed in order to control the DO channels.

  • Provide High Power Relay Output to turn ON/OFF the Lighting
  • Support Lighting Module (Max.):
  • Incandescent Lamp: 40 W/ 220 VAC * 8 Sets
  • LED(Electronic ballast): 40 W/ 220 VAC * 10 Sets
  • Isolated AC Digital Input
  • Made from fire retardant materials (UL94-V0 Level)
  • 5000 VDC Intra-Module Isolation
  • ±2 kV Surge, ±4 kV ESD and EFT Protection
  • Supports Modbus RTU and DCON Protocols
  • Low power consumption
  • DIN-Rail mounting

LC-103H CR: 1-channel AC Digital Input and 3-channel Relay Output Lighting Control Module with High Power Relay Output (RoHS)
