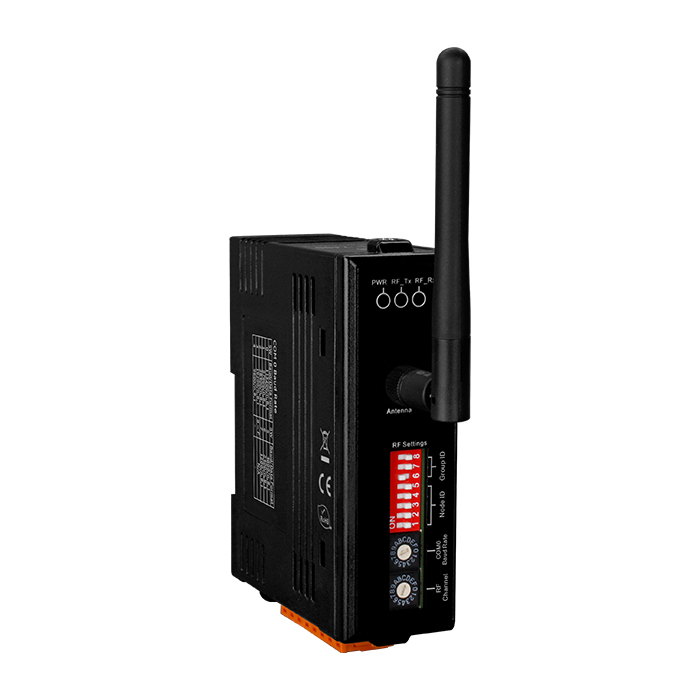

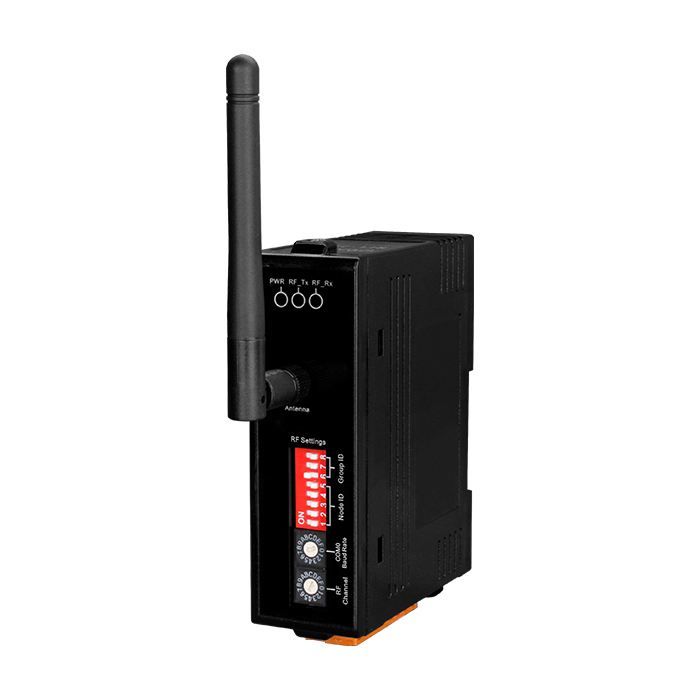

iWSN-2200

iWSN-2200 Wireless Data Contractor supports One 433MHz Wireless Communication Interface and one RS-232/RS-485 Communication Interface. Among these, the module supports Modbus RTU Protocol Slave, whereby the main function can receive and buffer 31 iWSN Sensor Data by wireless, and the user can transmit Modbus RTU commands to read the sensor’s data by RS-232/RS-485 interface.

  • 433 MHz Radio Frequency.
  • 16 RF Channels.
  • Supported Modbus RTU protocol (Slave)
  • Supported Data Buffers of 31 iWSN Sensors.
  • ESD Protection: +/- 4 kV for Contact Terminal.
  • Isolation: 3000 VDC for DC-to-DC, 2500 Vrms using a Photocoupler.
  • DIN-Rail Mountable.
  • Operating Temperatures: -25°C ~ +75°C

iWSN-2200 CR iWSN data concentrator with RS-232/RS-485 serial port (RoHS)

iWSN-2200-E CR iWSN data concentrator with Ethernet port (RoHS)
