iWSN-1120X

The iWSN series sensing module is a self-powered module for AC current, digital input, and temperature measurement. It can harvest the demand electricity from CT induced current so that there is no necessary to supply the power line for power supply.

KEY FEATURES:

  • Self-Powered by Built-In a Chargeable Li-ion Battery.
  • Split-Core Current Transformer (CT) for Easy Installation.
  • Energy Harvest from the CT Induced Electricity.
  • Uses 433 MHz Radio Frequency for Communication.
  • 16 RF Channels and 4 Group ID, Consist of a Maximum 64 RF Sub-Networks.
  • Supports Maximum 400A CT and 1000A Rogowski Current Transformer(RCT).
  • Provides Expansion Interface for Flexibility and Expansibility.
  • Offers Wall-Mount Mechanism and Magnet for Installation.

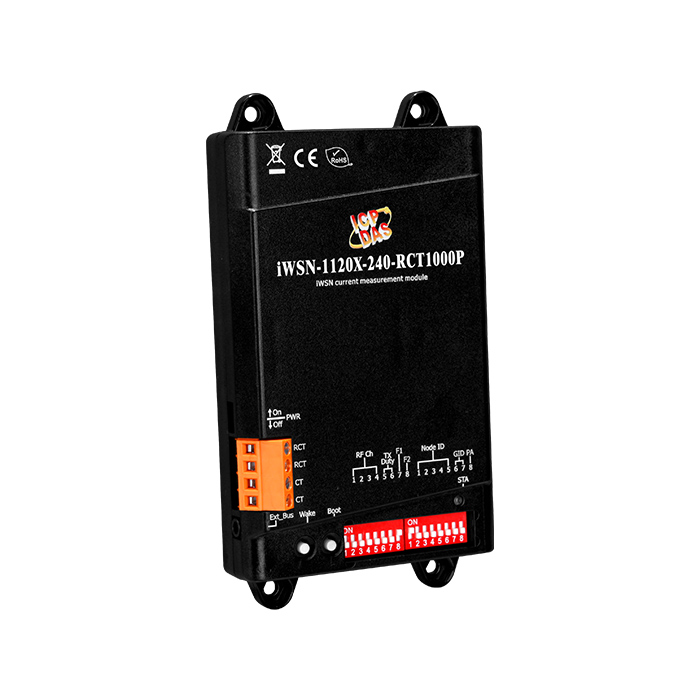

WSN-1120X-240-RCT1000P     CR  iWSN Current Sensing Module with 1-ch RCT Input, 1-ch CT Input (Charge Only) and 1 Expansion Interface (RoHS) (Included 1000A RCT and 200A CT)

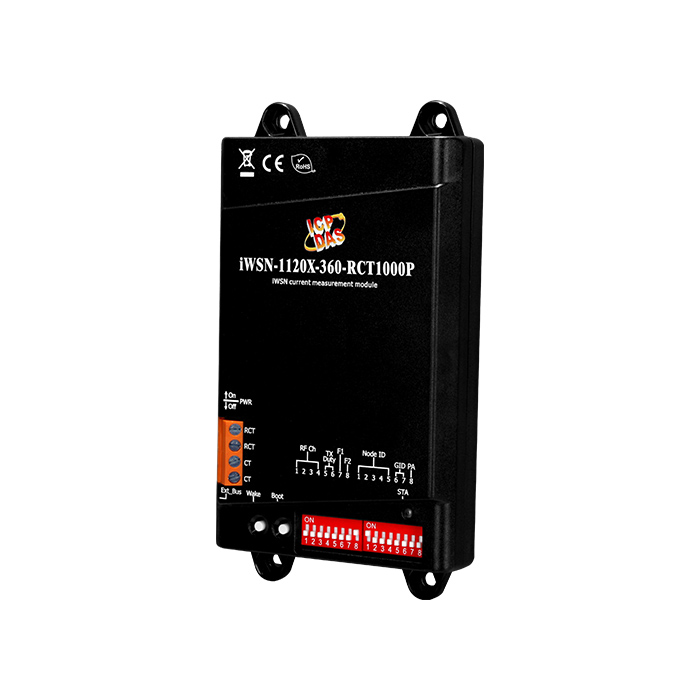

iWSN-1120X-360-RCT1000P     CR  iWSN Current Sensing Module with 1-ch RCT Input, 1-ch CT Input (Charge Only) and 1 Expansion Interface (RoHS) (Included 1000A RCT and 400A CT)
