- Intel® Skylake ULT/Baytrail processor
- 4 POE IEEE802.3af
- 2 Hot-swappable 2.5″ drive bay
- Optional 3G/Wi-Fi
- 2 RS-232, 1 Isolated RS-422/485
- 4 DI/DO
- 1 HDMI(lockable), 1 VGA

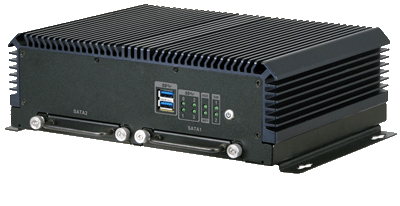

IVS-300-ULT3
The IVS series in-vehicle computer is designed with reliable performance for harsh environments. Rich I/O ports are provided to connect with multiple peripheral devices in vehicle for different applications.
In-vehicle systems must be able to withstand the shock and vibration that comes with driving a vehicle. IEI transportation series meet the requirement for different environments and has passed particular verification dependent on MILSTD-810G 514.5 standard, EN61373 for railway market, EN60721 for in-vehicle market.
IVS-300-BT-J1/4G-R10: Fanless embedded system with Intel® Celeron® Processor J1900 (10W) Processor with 4GB DDR3L pre-installed memory, PoE, on board GPS, HDMI, VGA, two 2.5″ removable SATA HDD bay, RoHs
IVS-300-ULT3-i5/4G-R10: Fanless embedded system with Intel® Core™ i5-6300U (15W) Processor (ULT) with 4GB DDR4L pre-installed memory, PoE, on board GPS, HDMI, VGA, two 2.5″ removable SATA HDD bay, RoHs
IVS-300-ULT3-i7/4G-R10: Fanless embedded system with Intel® Core™ i7-6600U (15W) Processor (ULT) with 4GB DDR4L pre-installed memory, PoE, on board GPS, HDMI, VGA, two 2.5″ removable SATA HDD bay, RoHs
