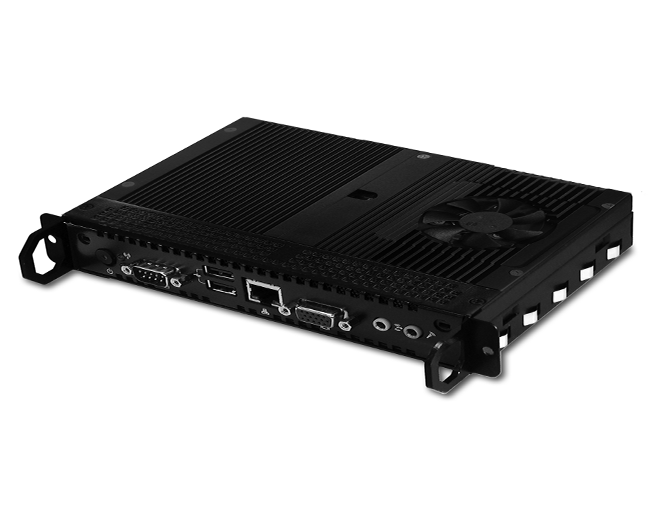

IOPS-18

SKU 3670

iOPS-18 is an Open Pluggable Specification (OPS) compliant signage player powered by the AMD G-Series Dual-Core APU T56N with AMD A50M Controller Hub chipset. Compliant with the Open Pluggable Specification (OPS), its slot-in module design effectively lowers deployment and field maintenance costs to simplify device installation, usage, maintenance and upgrades. Its slot-in module is connected via a JAE 80-pin connector, and includes the HDMI, DP, UART, and USB2.0 signals. The player-screen communication interface via UART and HDMI CEC provides status reporting and control, and also supports digital audio/video signals via HDMI or display port, for picture-perfect content reproduction. Also supports 1x Giga LAN, 1x COM ports, and 2x USB2.0 ports giving a great selection for data communication in display applications. The entire design makes digital signage applications more intelligent and connected.

  • AMD Embedded G-Series APU (dual-core)
  • Integrated 80 Core DirectX 11 GPU in processor
  • Supports DDR3 SO-DIM memory, up to 4GB
  • Support I/O: VGA, LAN port, USB 2.0, COM port, internal Mini PCI-E, OPS connector
  • Equipped with and HDD LED light

iOPS-18:  OPS System with AMD T56N APU 1.65GHz, 2GB RAM, 32GB SSD

iOPS-18M:  OPS System with AMD T56N APU 1.65GHz, without RAM, HDD
