- AMD Ryzen™ Embedded V1000/R1000 SoC on board
- 2x DDR4 SO-DIMM, Max. 32GB
- 2x PCI-E Gigabit LAN
- 2x HDMI, 1x eDP, 1x 24-bit LVDS dual-channel

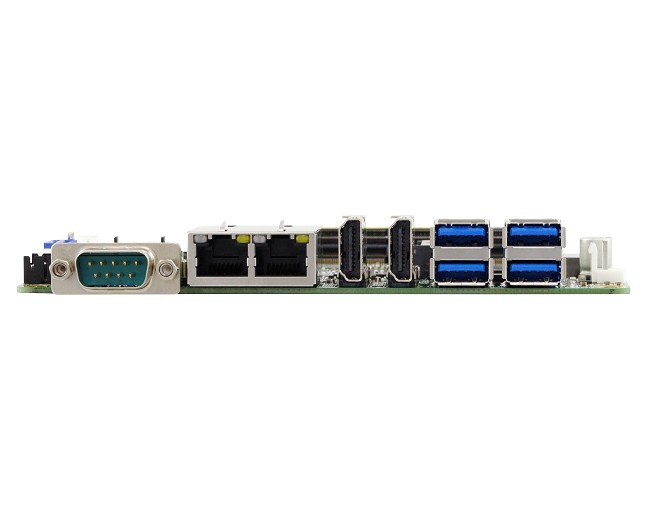

- 1x USB2.0, 4x USB3.1, 1x SATA III, 4x COM
- 2x M.2 sockets (M/ E key)
Generating stunning 4K Ultra High-Definition resolution for sharper images provided by the integrated Vega GPU, IB918 can drive up to four independent displays via two HDMI (2.0a), a 24-bit dual channel LVDS and an eDP graphics output. It has two SO-DIMM sockets supporting fast data transfers with up to 32GB DDR4-2400 memory and ECC for data integrity. Flexible I/O connectivity and expansion ports come in the form of one USB 2.0, four USB 3.1, one SATA III, four COM, a 12V~24V DC input and two M.2 sockets (M/E Key).

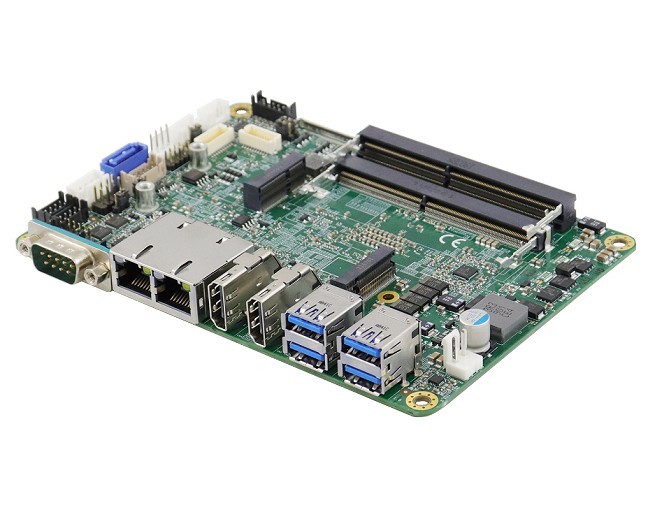

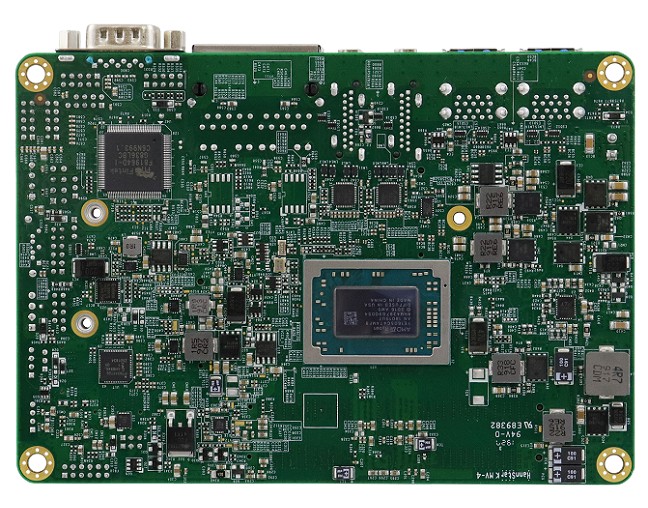

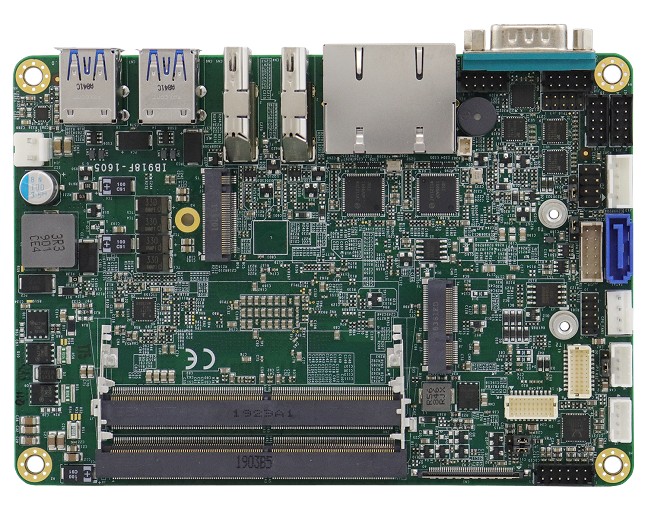

The compact IB918 board comes with low power consumption AMD Ryzen™ APUs, namely the 64-bit quad-core V1605B (IB918F-1605) and the dual-core V1202B (IB918F-1202), R1606G (IB918F-1606G) and R1505G (IB918F-1505G). The models are equipped with an advanced TPM 2.0 chip, a high level of hardware-based security that enables cryptographic operations for access control and authentication to prevent phishing attacks and authorization value guesses on devices running Windows 10. Measuring 102 x 147mm, the SBC provides an optimal fan and heatsink cooling solution and supports an operating temperature range of 0°C to 60°C.
