I-8×37-80 & I-8×17

SKU 2874

The ISaGRAF I-8000 Series (I-8437-80/8837-80, I-8417/8817) is an ISaGRAF PAC and includes ISaGRAF SoftLogic, ISaGRAF is a Windows programming tools and also provides powerful debugging tools including Online Monitor and Control and also Offline Simulation. There are more than 300 function blocks built-in the PAC for various Industrial Applications including PID, motion, remote IO, serial communication, SMS, retain variable, scaling, etc.

Software Features

  • MiniOS7 Embedded Operating System (DOS-like)
  • ISaGRAF Ver.3 SoftLogic Inside
  • Support IEC 61131-3 Standard
  • Accepts max. 64 KB ISaGRAF code size

Hardware Features

  • 80186 CPU (16-bit & 80 MHz) (for I-8×37-80)
  • 80188 CPU (16-bit & 40 MHz) (for I-8×17)
  • 512 KB SRAM & 512 KB Flash
  • 4/8 I/O Expansion Slots (support High/Low Profile I/O Modules)
  • 10M Ethernet Port (for I-8×37-80)
  • 3 or 4 Serial Ports (RS-232, RS-485)

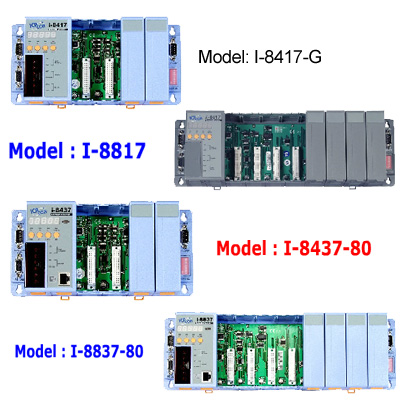

I-8437-80 CR (blue): 4 slots Faster CPU (80 MHz) Ethernet ISaGRAF PAC (RoHS)

I-8437-80G CR (gray): 80186, 80 MHz, 10 Base-T

I-8837-80 CR (blue): 8 slots Faster CPU (80 MHz) Ethernet ISaGRAF PAC (RoHS)

I-8837-80G CR (gray): 80186, 80 MHz, 10 Base-T

I-8417 CR (blue): 4 slots ISaGRAF PAC (RoHS)

I-8417-G CR (gray): 80188, 40 MHz

I-8817 CR (blue): 8 slots ISaGRAF PAC (RoHS)

I-8817-G CR (gray): 80188, 40 MHz
