I-8431/I-8831 & I-8431-G/I-8831-G

SKU 2871

The I-8431/ I-8831 are ethernet embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD.

The I-8431/I-8831are equipped an ethernet port and their back planes are equipped three serial COM Port, they include RS-232 and RS-485 ports and can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. By using S-256 (256 KBytes) or S-512 (512 KBytes)battery backup SRAM, they provide data logger storage function.

  • Provide multi Serial Port interface on back plane.
  • The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments.
  • Dual Bus designed to supports I-8K and I-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules
  • Compact I/O Expansion slot allows the quick installation of various 8K and 87K I/O module
  • The XServer architecture greatly simplify the programming of
  • TCP/IP protocol.
  • Supports the VxComm technique for all ports (Serial Port and Ethernet Port).
  • Firmware updated via the RS-232 port
  • Ventilated housing designed to operate between –25°C to +75°C
  • Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box
  • Frame Ground provides a path for bypassing ESD, allowing enhanced static protection (ESD) capability and ensures that the module is more reliable.
  • Equipped with MiniOS7, an embedded OS similar to DOS that is developed by ICP DAS Co., LTD.
  • Provides full C library functions such as 8K, 87K I/O, 7-segment LED, RTC (real time clock), EEPROM etc.

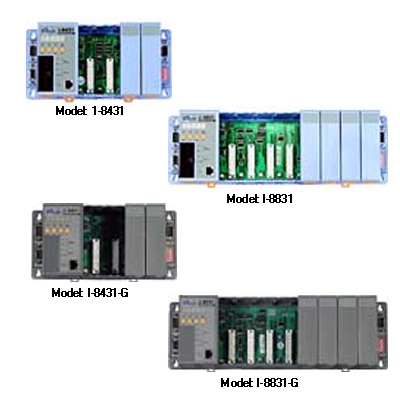

I-8431:Embedded Controller

I-8831:Embedded Controller

I-8431-G:Embedded Controller with gray color

I-8831-G:Embedded Controller with gray color
