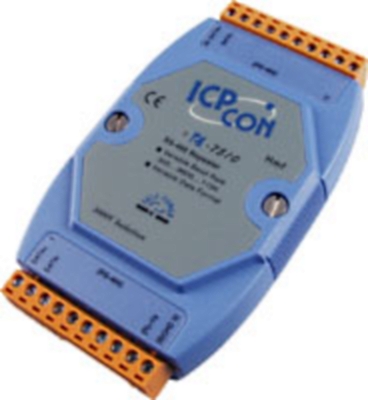

I-7510

SKU 3559

Isolated RS-485 Repeater

The I-7510/I-7510A provides 2-way optical isolation between one piece of RS-422/RS-485 equipment and the rest of the system. It can also be used as a repeater to extend the transmission of an existing network. Additionally, an RS-485 system can be expanded beyond the 256 node limitation imposed by the standard. It can also be used to convert a four-wire RS-422 signal into a 2-wire RS-485 signal, and vice versa.

The I-7510AR is exactly the same as the I-7510A, except for the isolation site. The isolation site of the I-7510A is located in the input interface circuit, but the isolation site of the I-7510AR is located in the input and output interface circuit. In other words the I-7510AR is 3-way isolation repeater module.

  • Auto Switching Baud Rate, 300 ~ 115200 bps
  • ESD Protection for RS-485 Data Line
  • 2-way 3000 VDC Isolation Protection for I-7510/I-7510A
  • 3-way 3000 VDC Isolation Protection for I-7510AR
  • Transmission Speed of up to 115200 bps
  • Power Input of +10 ~ +30 VDC
  • Supports Operating Temperatures from -25 °C ~ +75 °C
  • DIN-Rail

I-7510 CR: Isolated RS-485 Repeater (RoHS)
I-7510-G CR: Isolated RS-485 Repeater (Gray Cover) (RoHS)
