local CAN/CAN FD (CAN with Flexible Data-Rate) bridge used to establish a connection between two CAN bus system via single-mode fibre optic transmission medium


  • Compatible with the ISO 11898-2 Standard
  • Compatible with CAN Specification 2.0 A/B and FD
  • CAN FD Support for ISO and Non-ISO (Bosch) Standards Switchable
  • CAN FD Bit Rates for Data Field from 100 kbps to 10000 kbps
  • CAN Bit Rates from 10 kbps to 1000 kbps
  • Fibre Broken Line Detection
  • Support CAN Bus Message Filter Configuration
  • Support Firmware Update via USB
  • Basic CAN Message Routing Function via Group ID Settings.
  • Built-In Switchable 120 ohm Terminal Resistor for CAN Bus
  • Dip Switch for CAN/CAN FD Baud Rate Configuration

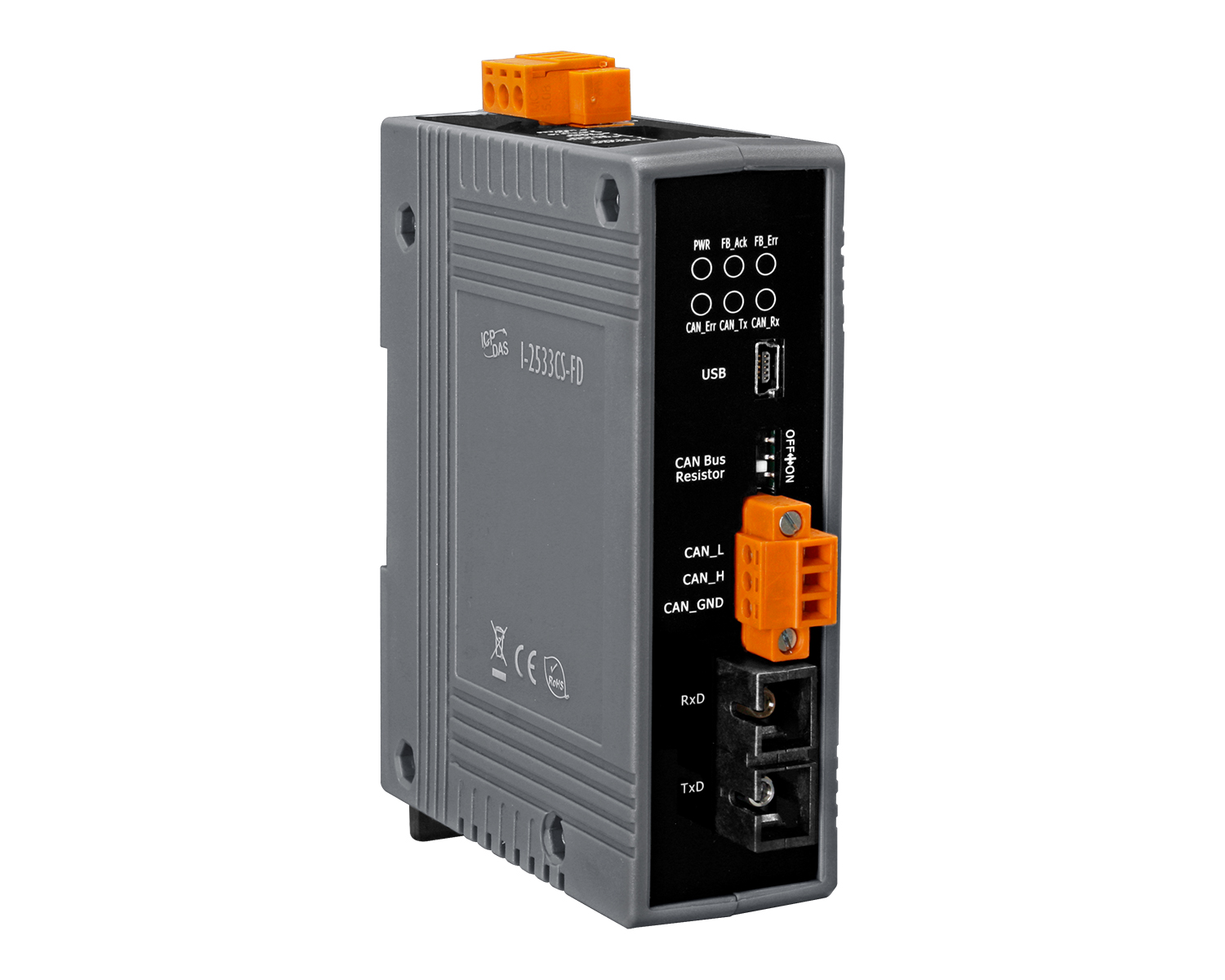

I-2533CS-FD     CR  CAN/CAN FD to Single-mode Fiber Bridge; 1 (30 km) single-mode, SC connector (RoHS)
