HTB-100-HM170

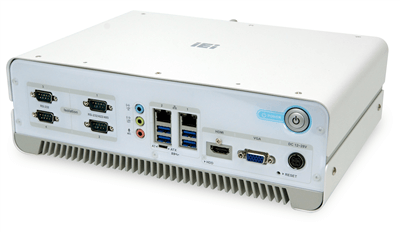

Isolated COM ports, rich I/O interface, and multiple expansions are built in to the HTB-100. The intelligent HTB-100 medical computing system will meet all demands from the medical applications.

The HTB-100 is compliant with medical standards, including IEC 60601-1 V3.1, IEC 60601-1-2 V4.0, IEC 62304, IEC 62366, ISO 14971 and FCC part 18 class B, making the medical environment more reliable.

  • Medical grade with high performance fanless embedded computing
  • 6th Gen Intel® Core™ processor platform with Intel® HM170 chipset and DDR4 memory
  • Triple independent display with high resolution support

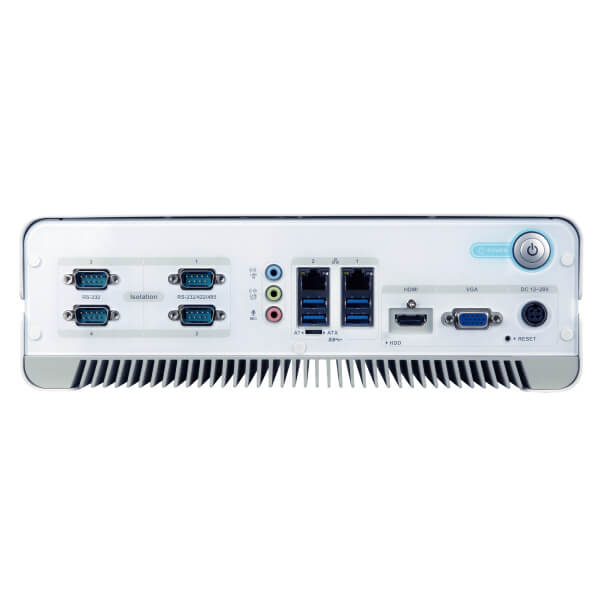

  • Isolated COM ports for enhancing safety among devices
  • Optional PCIe x16 expansion slot supports more flexible functions

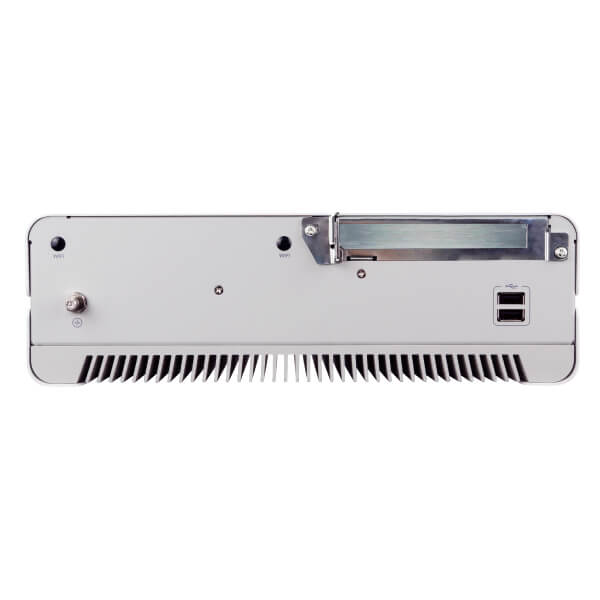

The flexible expansion is one of the advantages of the HTB-100 for medical applications. The HTB-100 reserves a PCIe x16 slot for add-on card expansions, such as capture card for medical imaging inspection during surgery.

The HTB-100 is equipped with a waterproof top cover in order to prevent any damage from cleaning or liquid which may indirectly affect patients. The HTB-100 can meet flat design and reduce maintenance effort.

The cable cover protects the HTB-100 from dust and liquid ingress, and allows the medical staff to easily manage all the cables from the I/O ports, making the cleaning process more convenient in medical environment.



HTB-100-HM170-i5/4G-R10: Ruggedized fanless embedded system with Intel® Core™ i5-6442EQ 1.9 GHz (up to 2.7 GHz, quad core, TDP 25W), 4GB DDR4, PCIe x16 expansion, VGA/HDMI/iDP, COM port, 12~28V DC, Adapter Vin:90~264VAC; 150W; MEDICAL; Vout:19VDC; CCL; R10
HTB-100-HM170-i7/4G-R10: Ruggedized fanless embedded system with Intel® Core™ i7-6822EQ 2.0 GHz (up to 2.8 GHz, quad core, TDP 25W), 4GB DDR4, PCIe x16 expansion, VGA/HDMI/iDP, COM port, 12~28V DC, Adapter Vin:90~264VAC; 150W; MEDICAL; Vout:19VDC; CCL; R10
