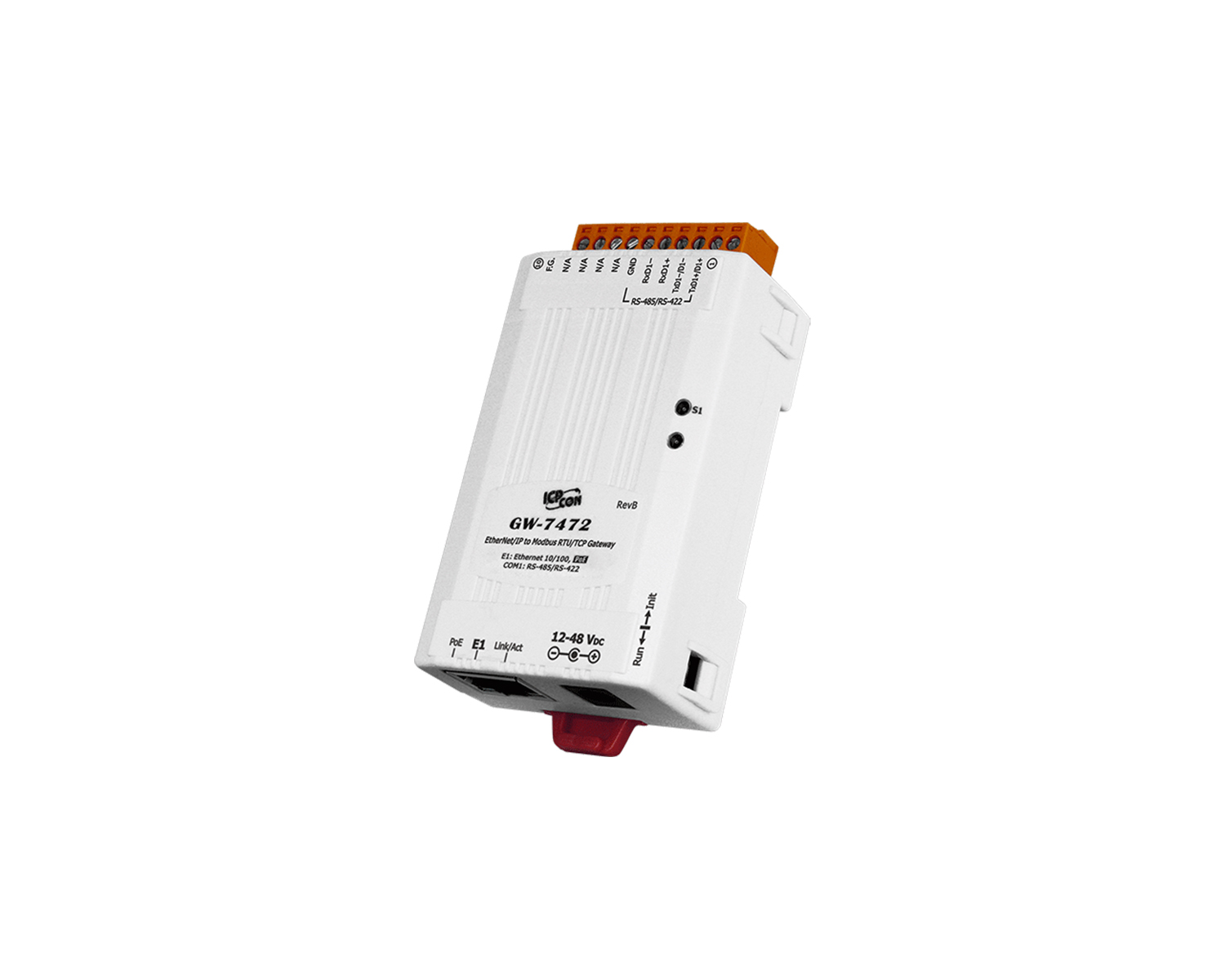

GW-7472

an EtherNet/IP adapter to Modbus RTU Master and Modbus TCP Client Gateway. It is helpful for data exchange between the Modbus RTU Network, Modbus TCP Network, and the EtherNet/IP Network.

KEY FEATURES:

  • Easy Firmware Update via Ethernet
  • Removable Terminal Block Connector
  • Tiny Form-Factor and Low Power Consumption
  • Ethernet Protocol: EtherNet/IP Adapter
  • Maximum Number of Connections for Explicit Messages: 6
  • Maximum Number of Connections for Implicit Messages: 1
  • Supported I/O Connection Methods
  • EtherNet/IP Input/Output Command Data Size: Maximum 500 Bytes
  • Modbus Protocol: Modbus RTU Master
  • Maximum Support 30 Modbus RTU commands
  • Maximum Support 10 Modbus TCP servers
  • Maximum Support 8 Modbus Commands for Each one Modbus TCP Server
  • Supported Modbus RTU Function Codes: 01,02,03,04,0F,10
  • Maximum Data Size of One Modbus Command: 240 Bytes
GW-7472     CR  EtherNet/IP to Modbus RTU/TCP Gateway with PoE and 1 RS-422/485 (RoHS)
  • ICP DAS
