GW-2492M - Image 2

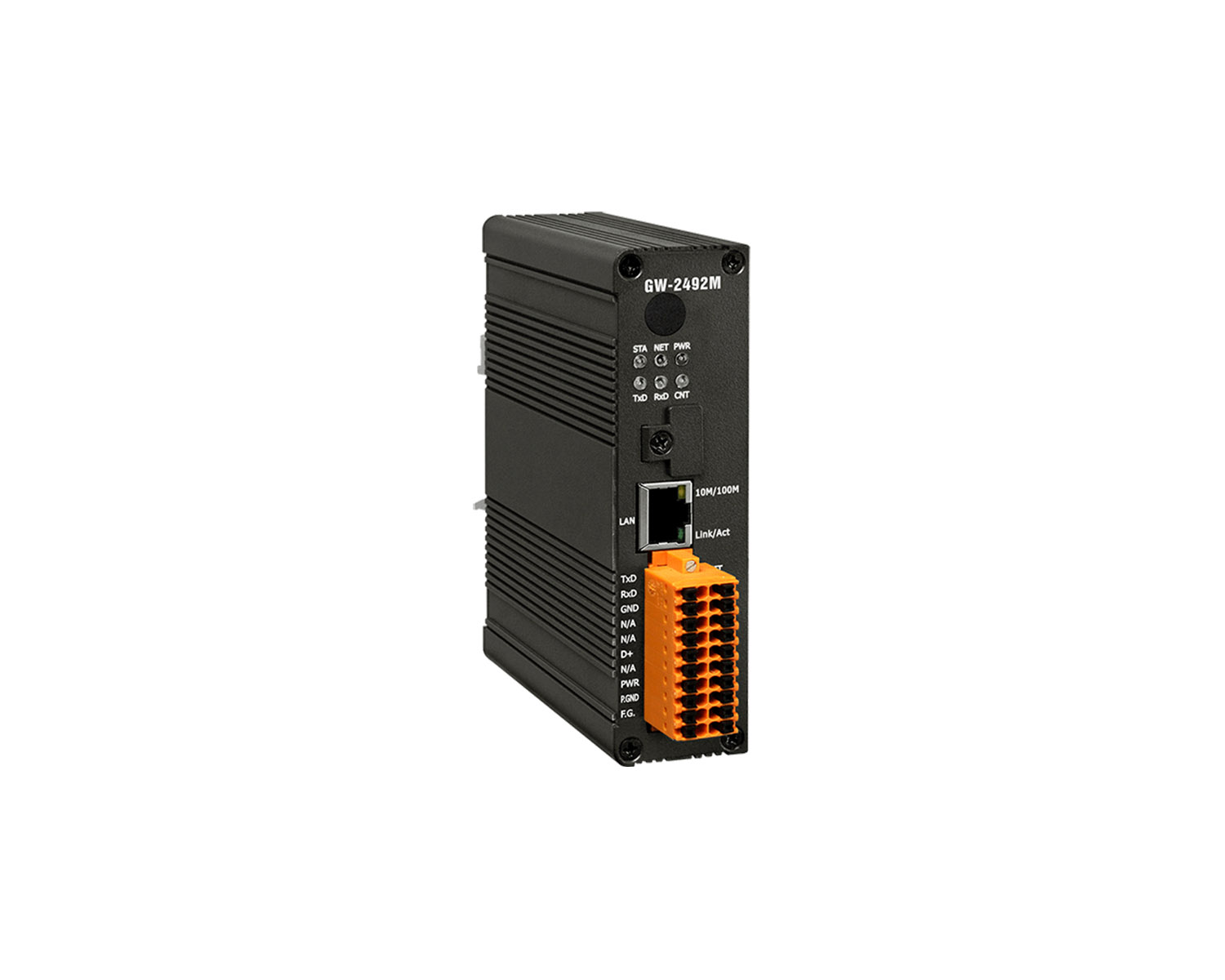

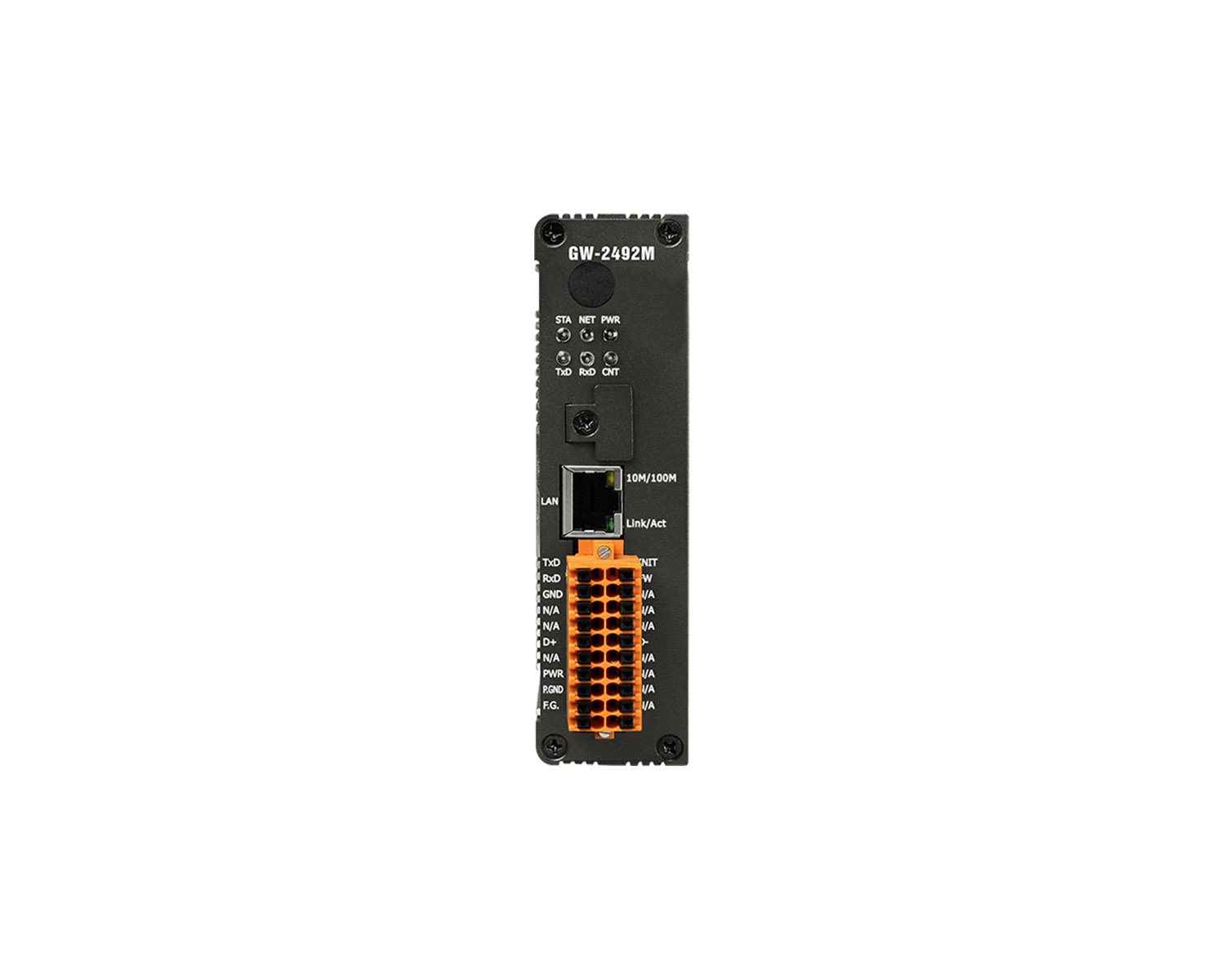

GW-2492M

a network gateway allowing BACnet client devices to be accessed Modbus network as a Modbus RTU master. The BACnet/IP protocol is used to relay and exchange information between building devices.

KEY FEATURES:

  • Read/Write Modbus Registers via BACnet Objects
  • Configurable BACnet/IP Server
  • Configurable Modbus RTU Master
  • Supports BACnet AI, AO, AV, BI, BO, BV, MSI, MSO, MSV Object Types
  • Supports Modbus Discrete Inputs, Coils, Input Registers and Holding Registers
  • Supports up to 600 DI, 600 DO, 600 AI and 600 AO to Transfer to BACnet Objects
  • Simple Data Translation allows you to Manipulate Data as it Passes Between Protocol
GW-2492M     CR  BACnet/IP to Modbus RTU Gateway (RoHS)
  • IEI Integration
