GW-2200

A Modbus TCP to RTU/ASCII gateway that enables a Modbus/TCP host to communicate with serial
Modbus RTU/ASCII devices through an Ethernet network, and eliminates the cable length limitation of legacy serial
communication devices.

KEY FEATURES:

  • Supports Modbus TCP/UDP Master and Slave
  • Supports Modbus RTU/ASCII Master and Slave
  • Max. TCP Connections (Masters) per Serial Port: 32
  • Read-Cache Ensures Faster Modbus TCP/UDP Response
  • Supports UDP Responder for Device Discovery (UDP Search)
  • Static IP or DHCP Network Configuration
  • Easy Firmware Update via the Ethernet (BOOTP, TFTP)
  • Built-In Web Server (HTTP)
  • 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
  • Includes Redundant Power Inputs: PoE (IEEE 802.3af, Class 1) and DC supply

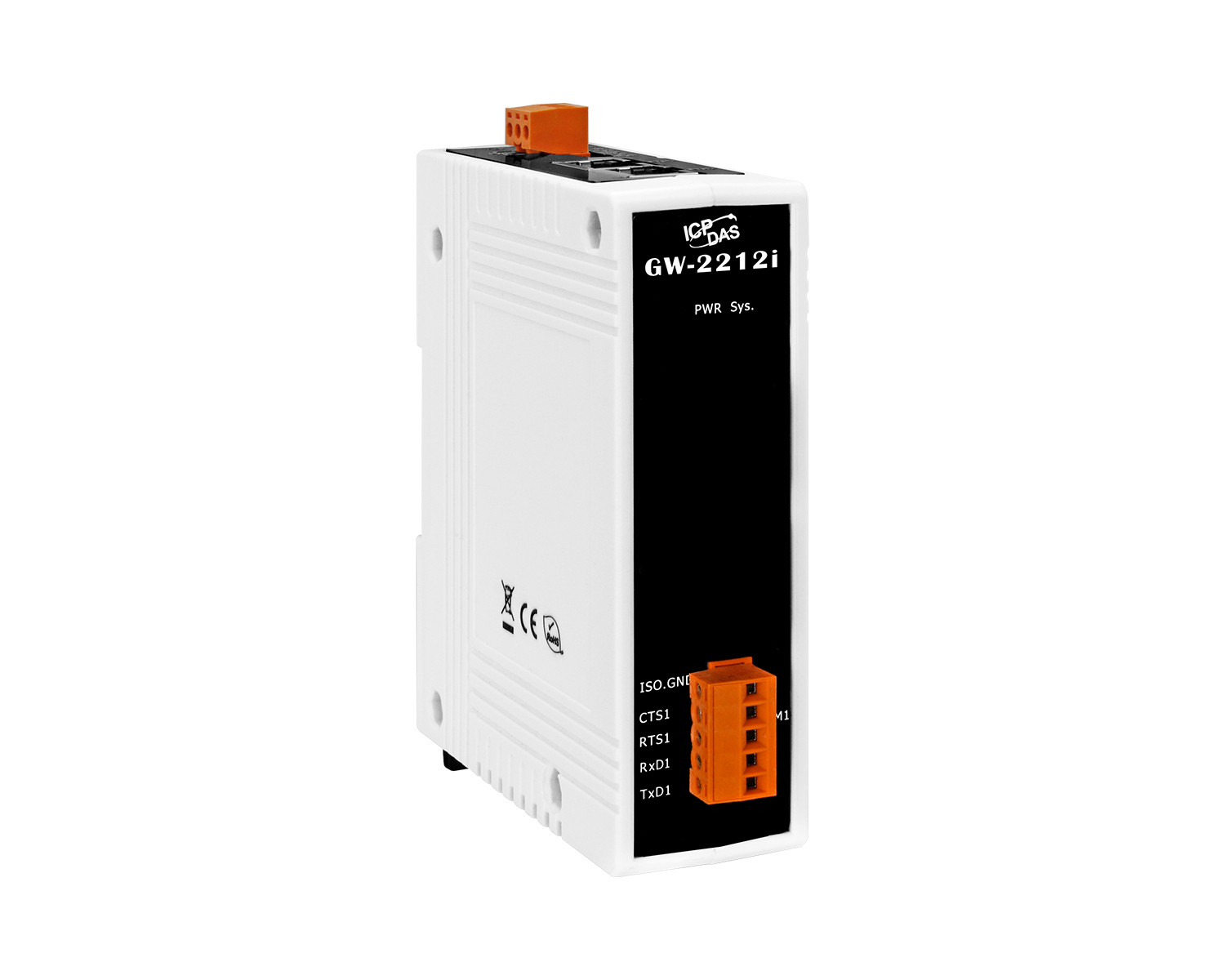

GW-2212i–  Modbus/TCP to RTU/ASCII Gateway with 2-port Ethernet Switch and 1 Isolated RS-232 Port (RoHS)

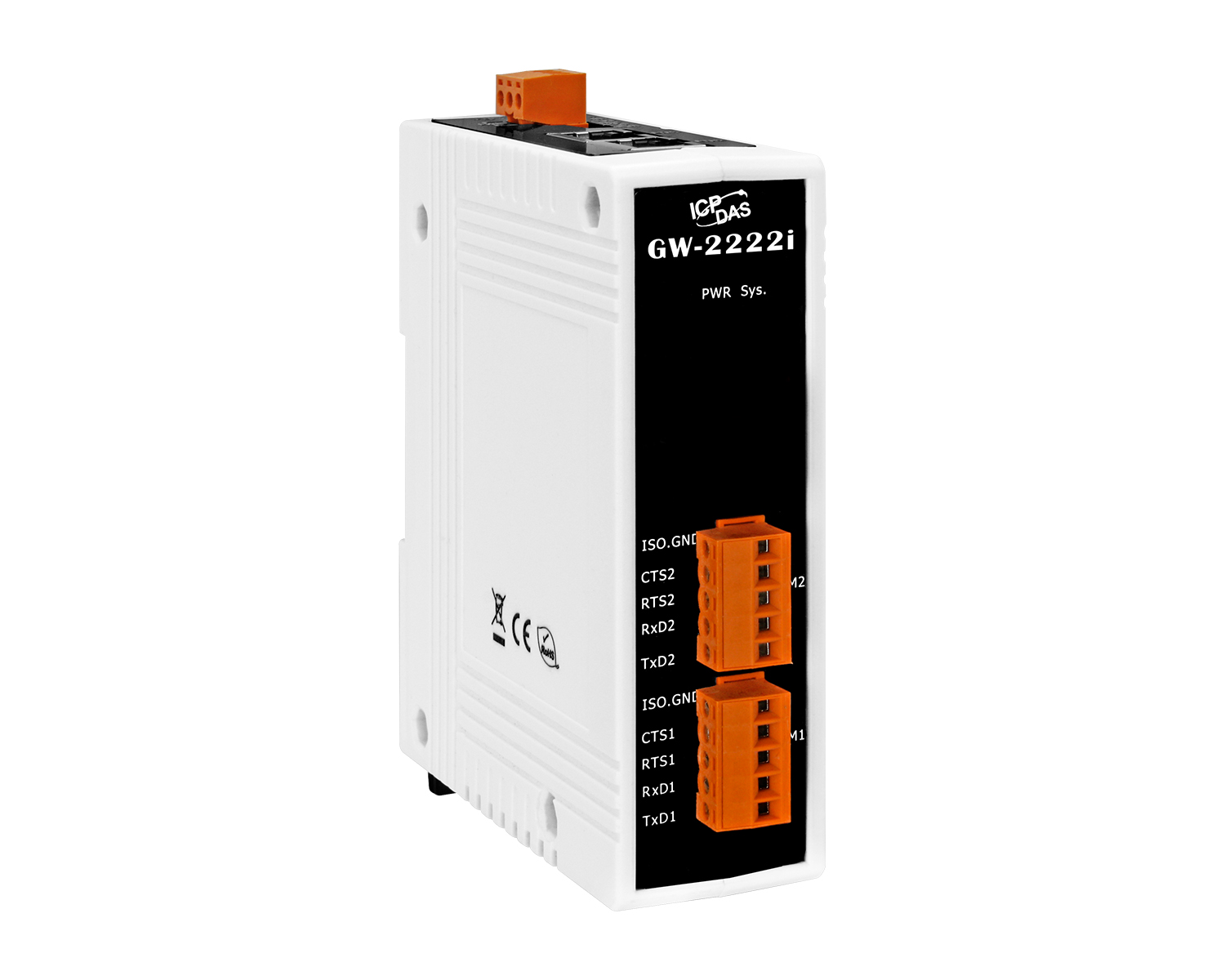

GW-2222i–  Modbus/TCP to RTU/ASCII Gateway with 2-port Ethernet Switch and 2 Isolated RS-232 Ports (RoHS)

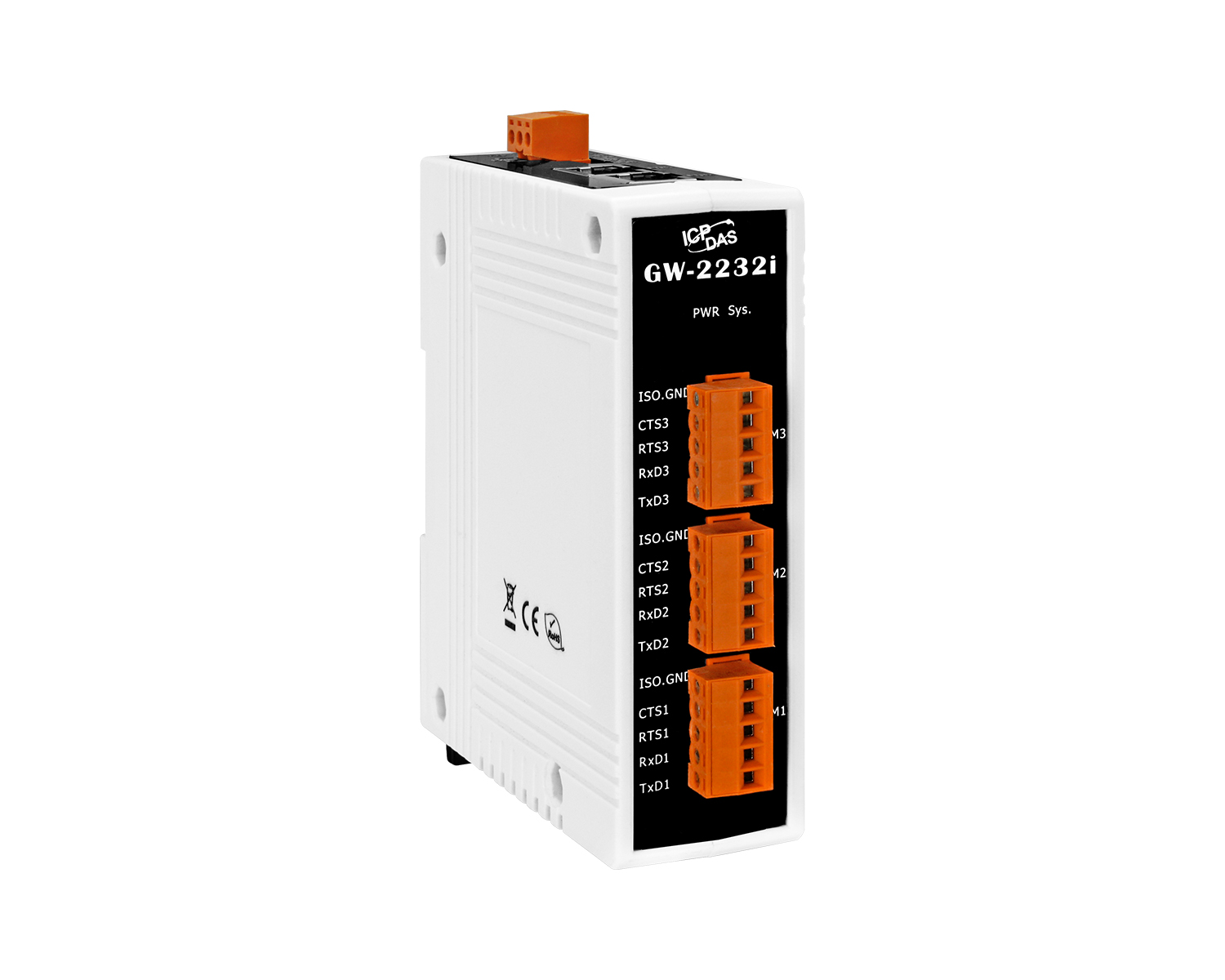

GW-2232i–  Modbus/TCP to RTU/ASCII Gateway with 2-port Ethernet Switch and 3 Isolated RS-232 Ports (RoHS)
GW-2215i–  Modbus/TCP to RTU/ASCII Gateway with 2-port Ethernet Switch and 1 Isolated RS-422/485 Port (RoHS)
GW-2225i–  Modbus/TCP to RTU/ASCII Gateway with 2-port Ethernet Switch and 2 Isolated RS-422/485 Ports (RoHS)
GW-2235i–  Modbus/TCP to RTU/ASCII Gateway with 2-port Ethernet Switch and 3 Isolated RS-422/485 Ports (RoHS)

  • ICP DAS
