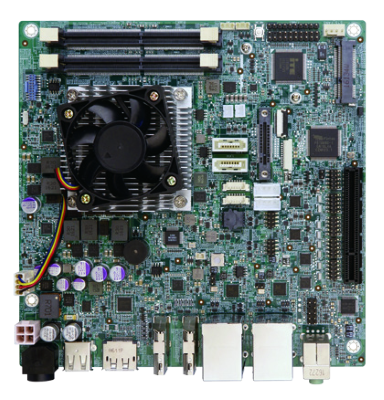

gKINO-DMF

SKU 4739

The gKINO-DMF is a small form factor Mini ITX Single Board Computer, allowing the gKINO-DMF to fit smaller enclosures and perfect for applications like gaming machines. The gKINO-DMF comes equipped with either a RX-421BD 2.1 GHz quad core processor or a RX-216GD 1.6 GHz quad core processor, both of these are low voltage processors from AMD.

The gKINO-DMF also supports a range of graphical options as it comes equipped with a AMD Radeon HD 1000 on board graphics card allowing the gKINO-DMF to output to three displays of  resolutions of up to 4096 X 2160 at 24Hz via the two HDMI ports and up to 3840 X 2160 at 60Hz via the Display port ++ output.

See the Product PDF Datasheet for Full Specifications

  • Mini ITX form factor with AMD Merlin Falcon processor with DDR4 memory (ECC support)
  • Triple display via, HDMI 1.4, DP++
  • M.2 B key support
  • Full-size PCIe mini slot

gKINO-DMF-421-R10: Mini-ITX SBC supports AMD RX-421BD on board SoC (quad-core 2.1GHz, 35W), DDR4 ,triple independent displays,HDMI/DP, dual GbE, SATA 6Gb/s, USB3.0, PCIe mini, M.2,HD audio and  RoHS

gKINO-DMF-216-R10: Mini-ITX SBC supports AMD RX-216GD on board SoC (dual- core 1.6GHz, 15W), DDR4 ,triple independent displays, HDMI/DP, dual GbE, SATA 6Gb/s, USB3.0, PCIe mini, M.2, HD audio and  RoHS (EOL 30/6/2020)

19800-000300-100-RS: RS-232 cable with bracket, 300mm, P=2.0

CB-USB02A-RS: Dual-port USB cable with bracket, 300mm, P=2.0

TPM-IN01-R20: 20-pin Infineon TPM module, software management tool, firmware v3.17
