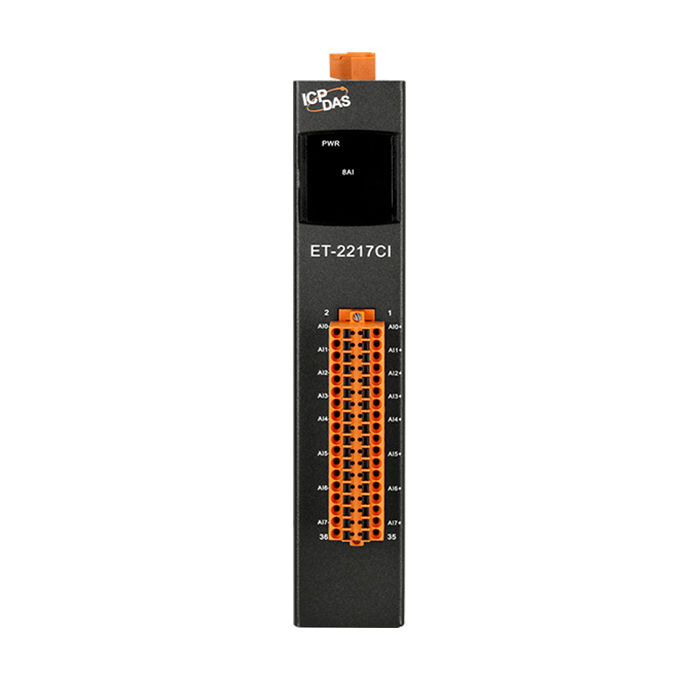

ET-2217CI - Image 2

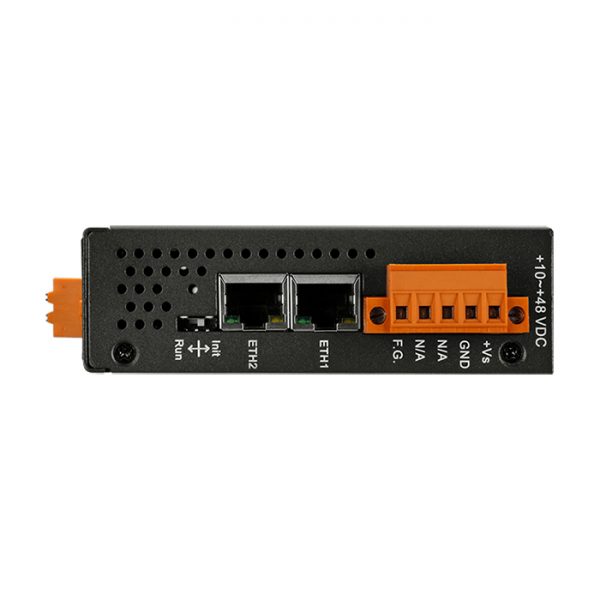

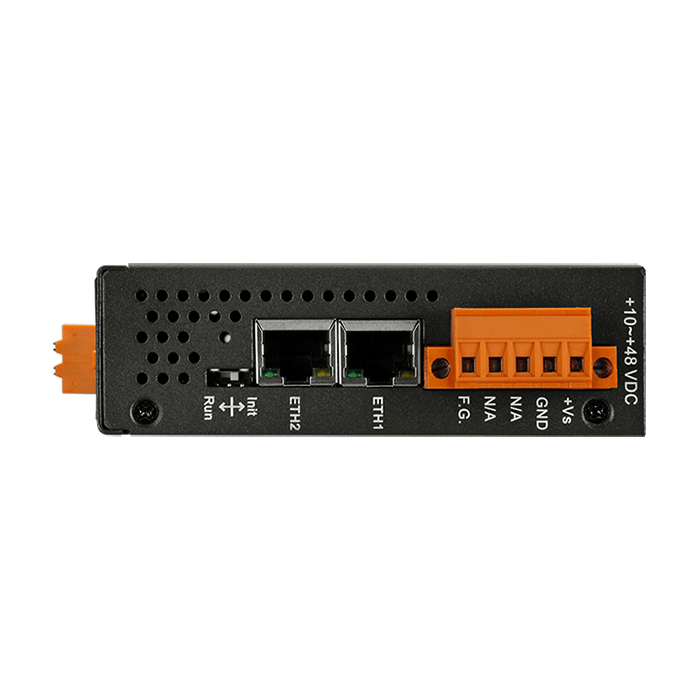

ET-2217CI - Image 3

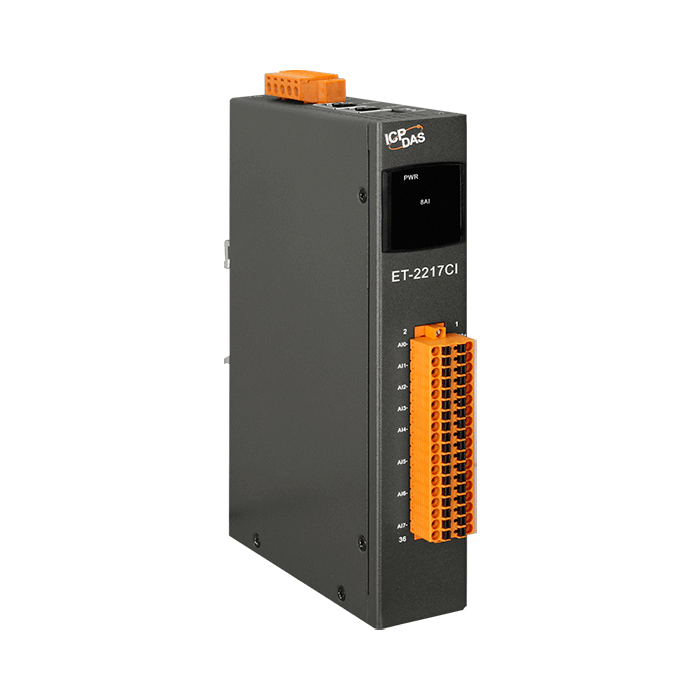

ET-2217CI

Ethernet I/O Module with 8-ch Analog Inputs. The module provides a programmable input range on all Analog Input channels (±1 V, ±2.5 V, ±5 V, ±10 V, 0 to 20mA, 4 to 20mA, and ±20 mA). Each analog input channel can be configured for an individual input range.

KEY FEATURES:

  • Able to Record Voltage and Current Measurements with Time Stamps
  • 8-channel Analog Inputs with 3000 VDC Channel-to-Channel Isolation
  • Max. Recording for Each Channel: 320,000
  • Built-in Web Server and I/O Pair Connection (Push and Pull)
  • 120 VDC Overvoltage Protection
  • Software Configurable Voltage/Current Input
  • Adjustable Sampling Rate (200Hz/10Hz per channel)
  • Support Modbus TCP/UDP and MQTT Protocols
  • 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
ET-2217CI     CR  Ethernet I/O Module with 2-port Ethernet Switch, 8-ch Analog Inputs with Channel-to-Channel Isolation (RoHS)
