ECAT-2057P

The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment. The ECAT-2057 series is built in isolated 16 digital outputs.

• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic

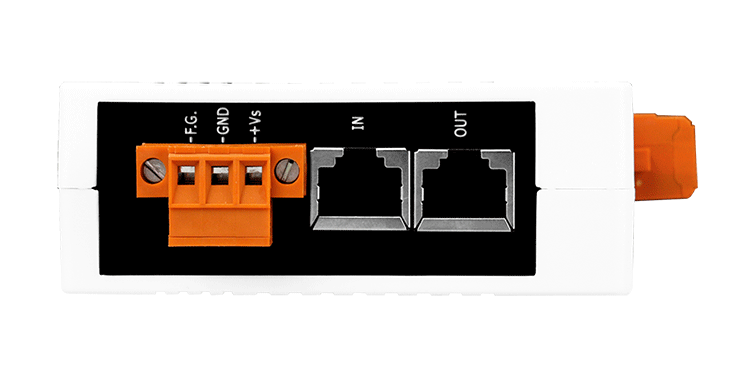

• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators for the I/O status
• Built-In digital I/O: 16 DO
• RoHS compliant
• ESD Protection 4 KV Contact for each channel

ECAT-2057P CR: EtherCAT Slave I/O Module with Isolated 16-ch DO (Source, PNP, 500 mA) (RoHS)
