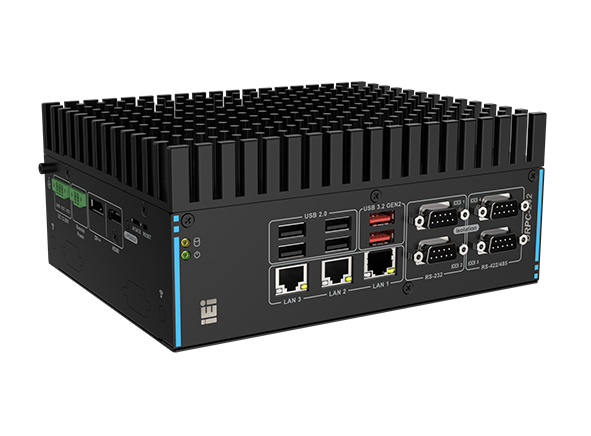

DRPC-242-ADL-P

Fanless DIN-Rail Embedded System



KEY FEATURES:

Supported CPUs:

  • Intel® Core™ i7-1260P (up to 4.7GHz, 12-core, 28W TDP)
  • Intel® Core™ i5-1240P (up to 4.4GHz, 12-core, 28W TDP)
  • Intel® Core™ i3-1220P (up to 4.4GHz, 10-core, 28W TDP)
  • Intel® Celeron® 7305 (5-core, 15W TDP)
  • 2 x USB 3.2 Gen2 & 4 x USB 2.0
  • 2 x RS-232 & 2 x RS-422/485 (with 2.5KV isolation)
  • CE/FCC compliant

ICP Electronics Australia is proud to introduce iEi’s DRPC-242-ADL-P. The iEi DRPC-242-ADL-P is a groundbreaking DIN-rail embedded system tailored for industrial environments. Powered by 12th Gen Intel® Core™ processors, this device offers exceptional computational abilities, designed to tackle advanced Industrial Internet of Things (IIoT) challenges from robotics control to AI inference computing. With its rugged design, it’s built to perform in extreme conditions, featuring a fanless cooling system, a wide operational temperature range, and enhanced shock resistance.

What sets it apart is its focus on cybersecurity through Intel® Platform Trust Technology, providing robust device authentication and password protection. It also supports Intel® Deep Learning Boost and the Intel® Distribution of OpenVINO™ toolkit, elevating its AI-related capabilities. The device is highly versatile with a modular PCIe x4 design, allowing for a range of add-on cards tailored to specialized industrial needs. Connectivity is also a strong point, offering multiple I/O ports and wireless options including 5G/4G, Wi-Fi, and Bluetooth for edge telemetry applications.

With these features, the DRPC-242-ADL-P stands as a comprehensive solution for modern industrial applications, combining high-performance computing, security, and adaptability in a rugged package.

Ordering Information

DRPC-242-ADL-P-W10IoT21-V-R10 OS Image with Windows® 10 Enterprise Value 64-bit 2021 LTSC for DRPC-242-ADL-P Celeron,i3 & i5 Series, with DVD-ROM, RoHS
DRPC-242-ADL-P-W10IoT21-H-R10 OS Image with Windows® 10 Enterprise High End 64-bit 2021 LTSC for DRPC-242-ADL-P i7 Series, with DVD-ROM, RoHS
DRPC-242-ADL-P-i7CS-R10 Embedded system with 12th Gen Intel® Core™ i7-1260P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~24V DC, RoHS
DRPC-242-ADL-P-i5CS-R10 Embedded system with 12th Gen Intel® Core™ i5-1240P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~24V DC, RoHS
DRPC-242-ADL-P-i3CS-R10 Embedded system with 12th Gen Intel® Core™ i3-1220P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~24V DC, RoHS
DRPC-242-ADL-P-CCS-R10 Embedded system with 12th Gen Intel® Celeron® 7305, TDP 15W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~24V DC, RoHS
