DM2 Series

KEY FEATURES:

Built for Rugged Environments

  • IP65-rated front protection
  • Wide temperature range: -20°C to 60°C
  • High brightness: 850 nits / 1000 nits sunlight-readable displays
  • Enhanced durability: Anti-UV, anti-glare, and 7H scratchproof PCAP touchscreen
  • 9-36V DC wide range input

Wide Range of Sizes

  • Square screen options: 10.4″, 12.1″, 15″, 17″, 19″
  • Widescreen options: 10.1″, 13.3″, 12.1″, 15.6″, 18.5″, 21.5″, 23.8″
  • Ultra-wide screen option: 12.3”
  • Narrow Bezel Design

Built for Versatility

  • Integrated USB hub
  • 720p wide-angle fixed-focus camera*
  • Dual 2W speakers*

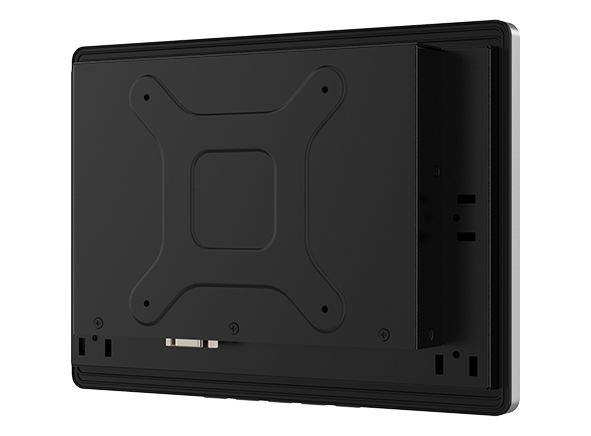

  • Flexible installation: Wall mount, panel mount, or desktop stand
  • Front-accessible OSD buttons

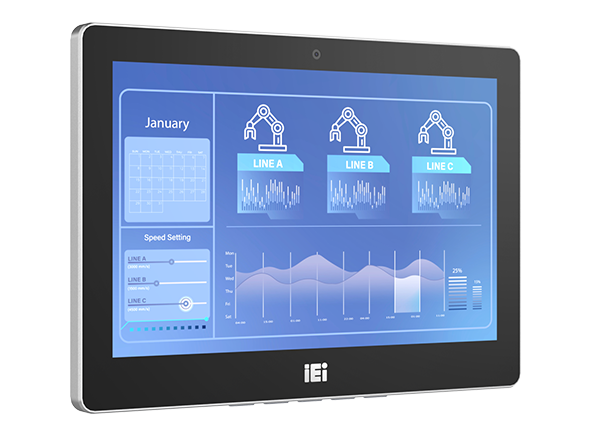

ICP Electronics Australia is proud to introduce iEi’s industrial display solutions with the launch of the DM2 Series – a comprehensive line of industrial touch monitors built to withstand the most demanding environments without compromising on performance or design.

Purpose-built for applications such as factory automation, transportation hubs, kiosks, and more, the DM2 Series blends robust engineering with sleek, modern aesthetics. With screen sizes ranging from 10.1” to 23.8”, including square, widescreen, and ultra-wide formats, the DM2 Series offers unmatched flexibility for diverse installation needs.

Each monitor features a high-brightness display (up to 1000 nits) with anti-glare and anti-UV PCAP touchscreens, ensuring clear visibility in bright or outdoor environments. The rugged design doesn’t stop there – the front panel is IP65-rated for protection against dust and water, and the entire unit supports a wide operating temperature range of -20°C to 60°C.

Beyond durability, the DM2 Series is designed with usability in mind. Optional features such as a built-in 720p camera, dual 2W speakers, and an integrated USB hub enhance user interaction and system integration. With multiple mounting options and front-accessible OSD buttons, installation and adjustments are made simple and accessible.

Whether upgrading an existing industrial HMI setup or building a new interactive system from the ground up, the IEI DM2 Series offers a versatile, rugged, and future-ready solution.

Ordering Information

LCD Size Model Brightness (cd/m2) Max Resolution (Aspect Ratio) Contrast Ratio Viewing Angle (H-V)
10.1″ DM2-W101G(L) 400 1280×800 (16:10) 800:1 178°/178°
10.4″ DM2-104E(L) 350 1024×768 (4:3) 1000:1 176°/176°
12.1″ DM2-121E(L) 500 1024×768 (4:3) 1000:1 178°/178°
12.1″ DM2-W121G(L)(-HL) 400/1000 1280×800 (16:10) 1000:1 170°/170°
12.3″ DM2-UW123J(L) 850 1920×720 (8:3) 1000:1 170°/170°
13.3″ DM2-W133K(L) 350 1920×1080 (16:9) 800:1 176°/176°
15″ DM2-150E(L) 350 1024×768 (4:3) 1000:1 178°/178°
15.6″ DM2-W156K(L) 450 1920×1080 (16:9) 800:1 178°/178°
17″ DM2-170H(L) 350 1280×1024 (5:4) 800:1 160°/170°
18.5″ DM2-W185K(L) 350 1920×1080 (16:9) 1000:1 170°/170°
19″ DM2-190H(L) 450 1280×1024 (5:4) 1000:1 178°/178°
21.5″ DM2-W215K(L) 350 1920×1080 (16:9) 1000:1 178°/178°
23.8″ DM2-W238K(L) 350 1920×1080 (16:9) 1000:1 178°/178°
