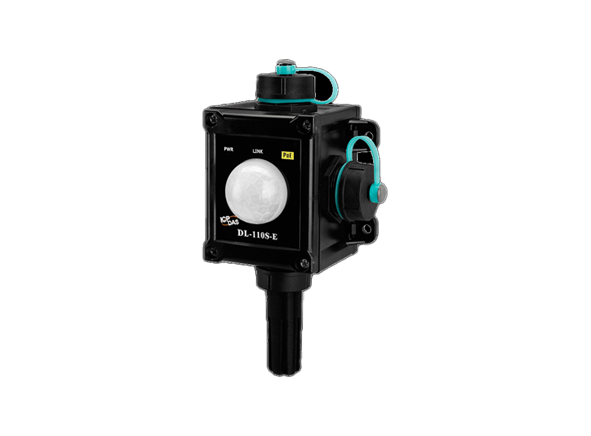

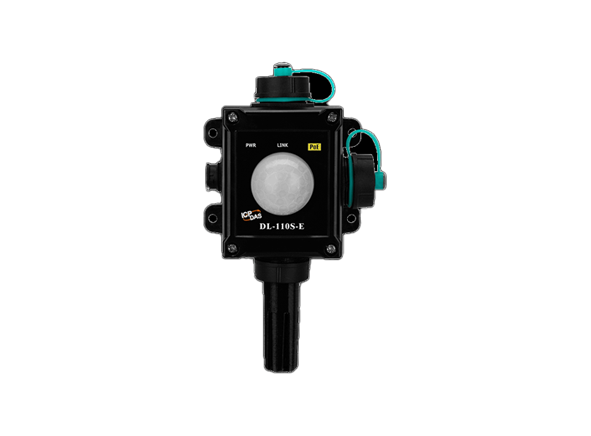

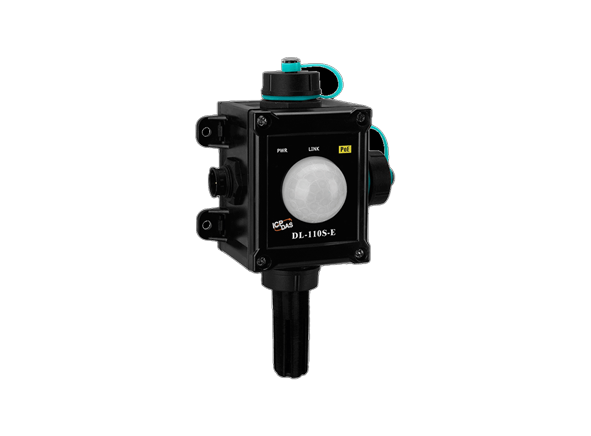

DL-110S-E

IP67 Remote Illuminance/Temperature/Humidity/Dew Point Data Logger Module



KEY FEATURES:

  • Illumination Measurement Range: 0 to 100,000 Lux
  • Temperature Measurement Range: -20 to +60°C
  • Humidity Measurement Range: 0 to 100% RH
  • Able to store up to 600,000 records with date and time stamps Free Software Utility, iOS APP and Android App Included
  • Supports the DCON, Modbus RTU, Modbus TCP and MQTT Protocols
  • Includes RS-485/Ethernet Communication Interfaces
  • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
  • Supports Web Confi guration and Firmware Update via Ethernet
  • IP67 Protection Approval

ICP Electronics Australia is proud to introduce ICP DAS DL-110S-E. The DL-110S-E is a robust and high-capacity data logger module developed by ICP DAS. Equipped with IP67 protection approval, it can efficiently measure and record illumination, temperature, humidity, and dew point data. Its broad measurement ranges for illumination (0 to 100,000 Lux), temperature (-20 to +60°C), and humidity (0 to 100% RH) make it a versatile choice for diverse environments.

The device can store up to 600,000 records, each embedded with a date and time stamp, ensuring an accurate log of environmental conditions. Users can access real-time data remotely from the device using the free Windows software, the iOS App, or the Android App.

Supporting industrial protocols including DCON, Modbus RTU, Modbus TCP, and MQTT, the DL-110S-E offers seamless integration with existing systems. Its Ethernet and RS-485 communication interfaces further enhance its interoperability.

With a built-in web server, users can easily configure the module and monitor data. The DL300 Utility offers enhanced features such as run chart display, log alarm events, and data export to .CSV files. Additionally, the device supports IoT applications through the MQTT protocol and offers real-time data accessibility with the iAir App.

In applications like greenhouse automation, the DL-110S-E proves invaluable, providing environmental monitoring to optimize plant growth conditions, increase crop yield, and ensure product traceability.



KEY FEATURES:

  • Illumination Measurement Range: 0 to 100,000 Lux
  • Temperature Measurement Range: -20 to +60°C
  • Humidity Measurement Range: 0 to 100% RH
  • Able to store up to 600,000 records with date and time stamps Free Software Utility, iOS APP and Android App Included
  • Supports the DCON, Modbus RTU, Modbus TCP and MQTT Protocols
  • Includes RS-485/Ethernet Communication Interfaces
  • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
  • Supports Web Confi guration and Firmware Update via Ethernet
  • IP67 Protection Approval

Ordering Information

DL-110S E     CR  IP67 Remote Illuminance/Temperature/Humidity/Dew Point Data Logger Module, Using DCON, Modbus RTU, Modbus TCP and MQTT Protocols (Black Cover) (RoHS)
