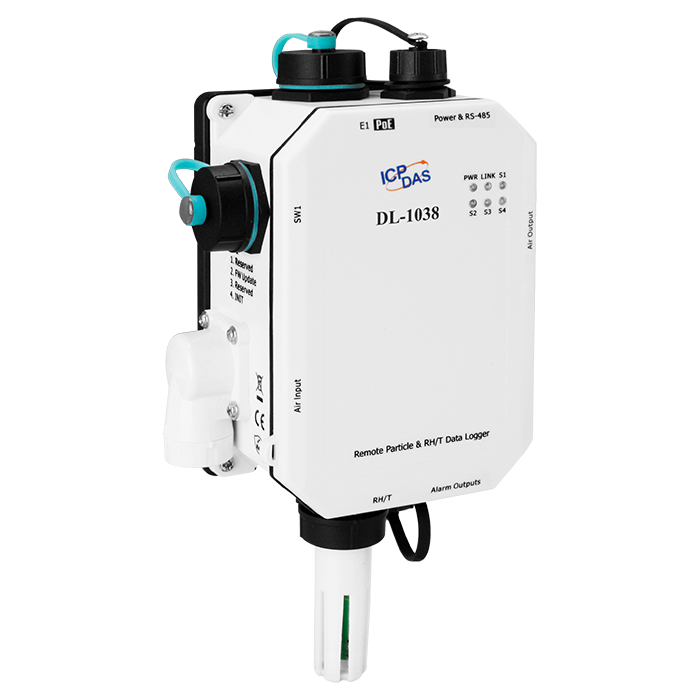

DL-1038

A particle and gas measurement module that can measure the concentration of aerosols in the air and the concentration of various other fumes that impact human health.

KEY FEATURES:

  • Able to Record PM1/2.5/10, CO, CO2, TVOC, Temperature, Humidity, and Dew Point Measurements
  • Electrochemical Sensor
  • Up to 180,000 Records with Date and Time Stamps
  • Web-Based Configuration Interface
  • Simple and Powerful Software Utility, iOS APP, and Android App Included
  • Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
  • Includes RS-485/Ethernet/PoE Communication Interfaces
  • Relay Output for Audible/Visual Alarm or IAQ Device Control
  • Includes Redundant Power Inputs: PoE (IEEE 802.3af, Class 1) and DC Input
  • IP 43 Protection Approval
DL-1038  Remote PM1/2.5/10/CO/CO2/TVOC/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 and PoE (RoHS)
