- Fanless system with IBASE IB818 3.5” Disk-Size SBC
- Supports Intel® Atom™ processors E3930 & Pentium® N4200/ Celeron® N3350 Series
- Wide-range operating temperature from -30°C to 65°C (airflow) w/ Intel® Atom™ CPU
- 12V~24V DC wide-range power input
- Wall mount kit included

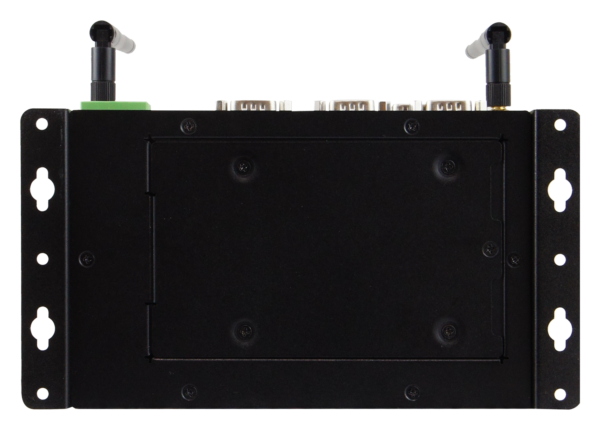

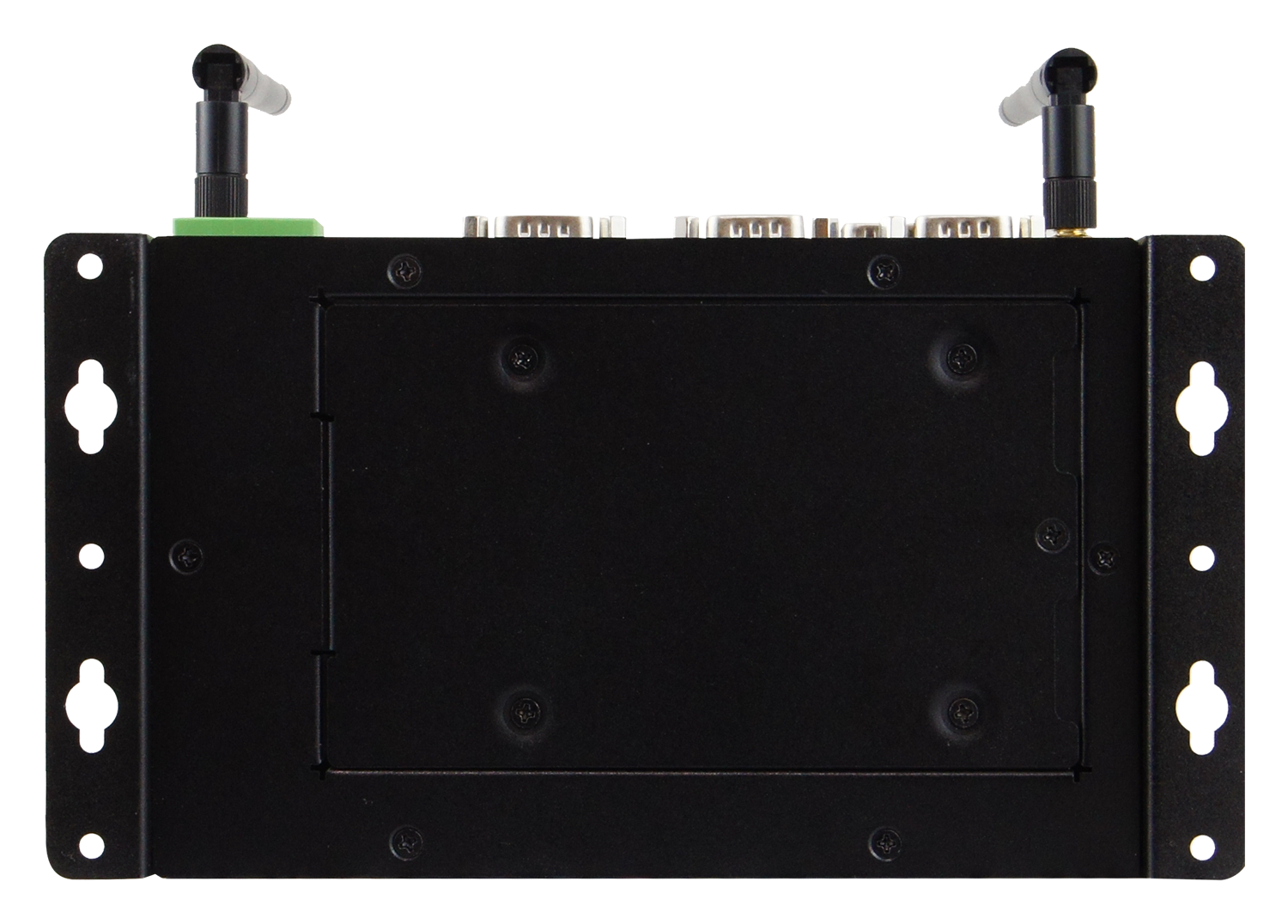

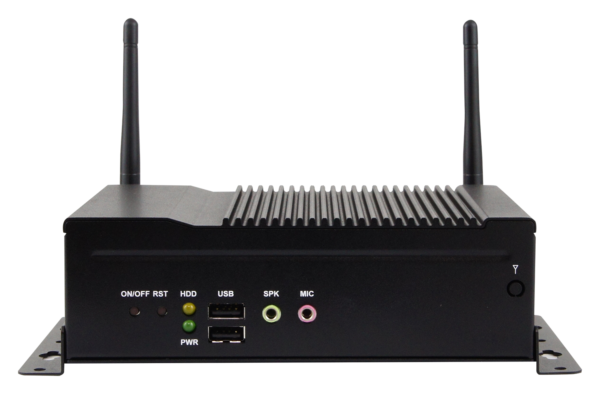

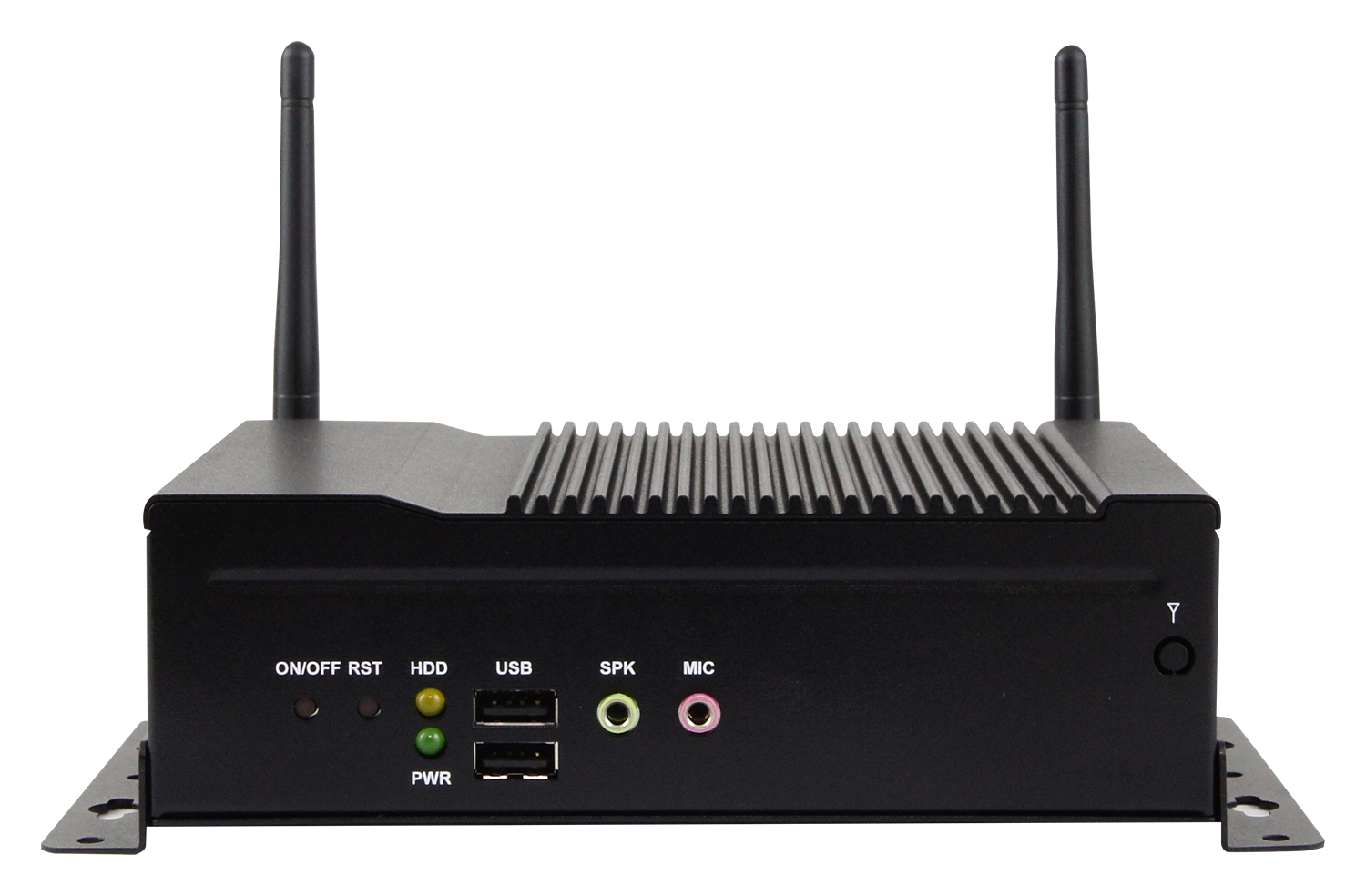

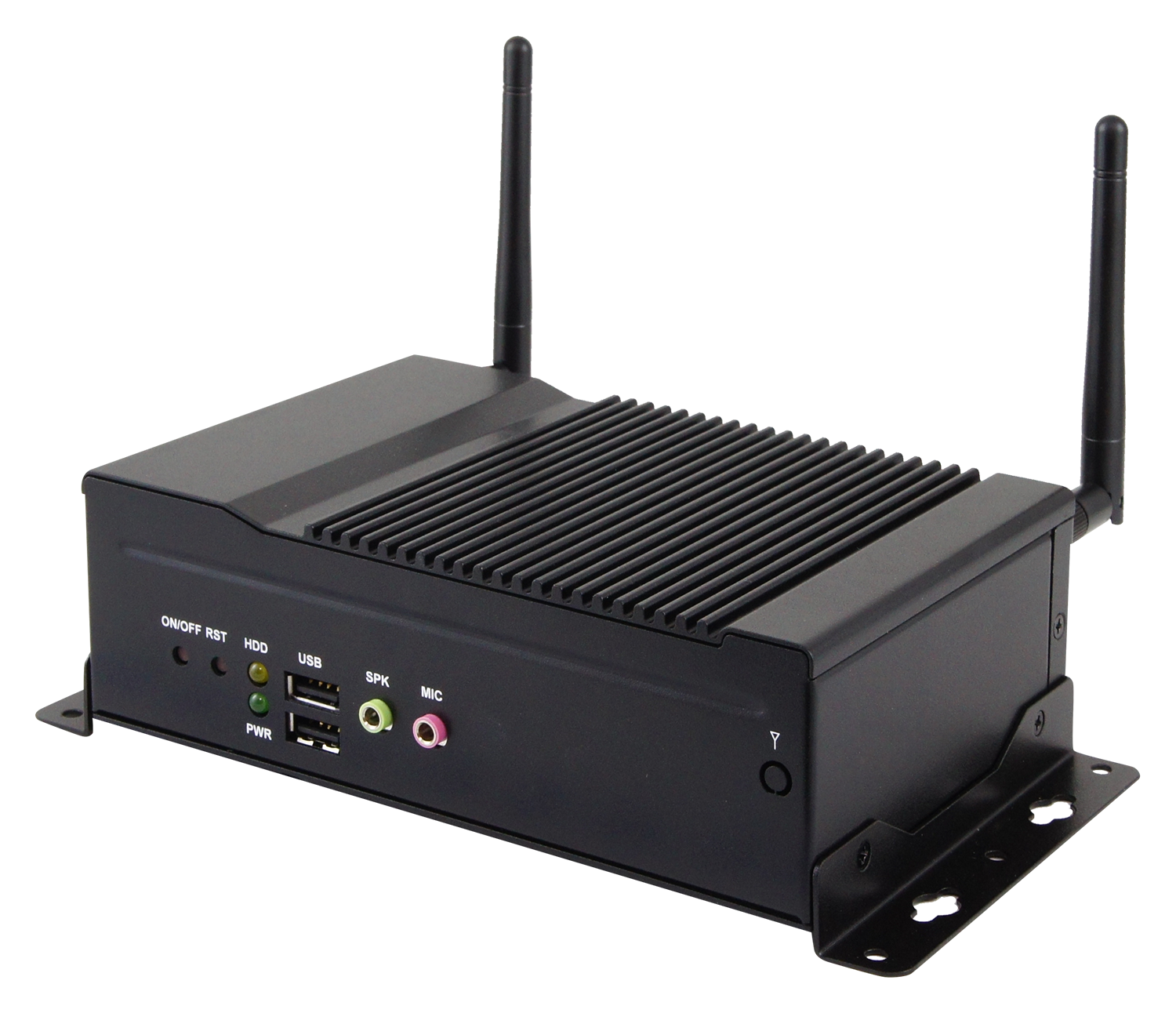

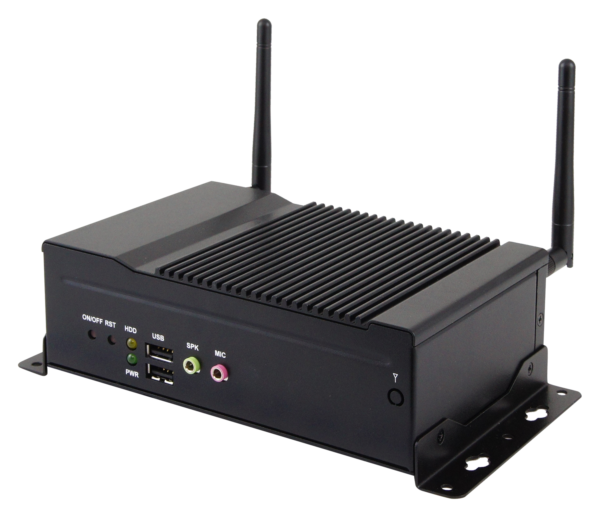

The CSB200-818 is a slim fanless system that is fully operable under harsh conditions, with a wide-range operating temperature. Suitable for 24/7 deployments such as in industrial automation and intelligent transportation applications, this compact system comes with a 12V-24V DC terminal block power input and an optional 60W power adaptor.

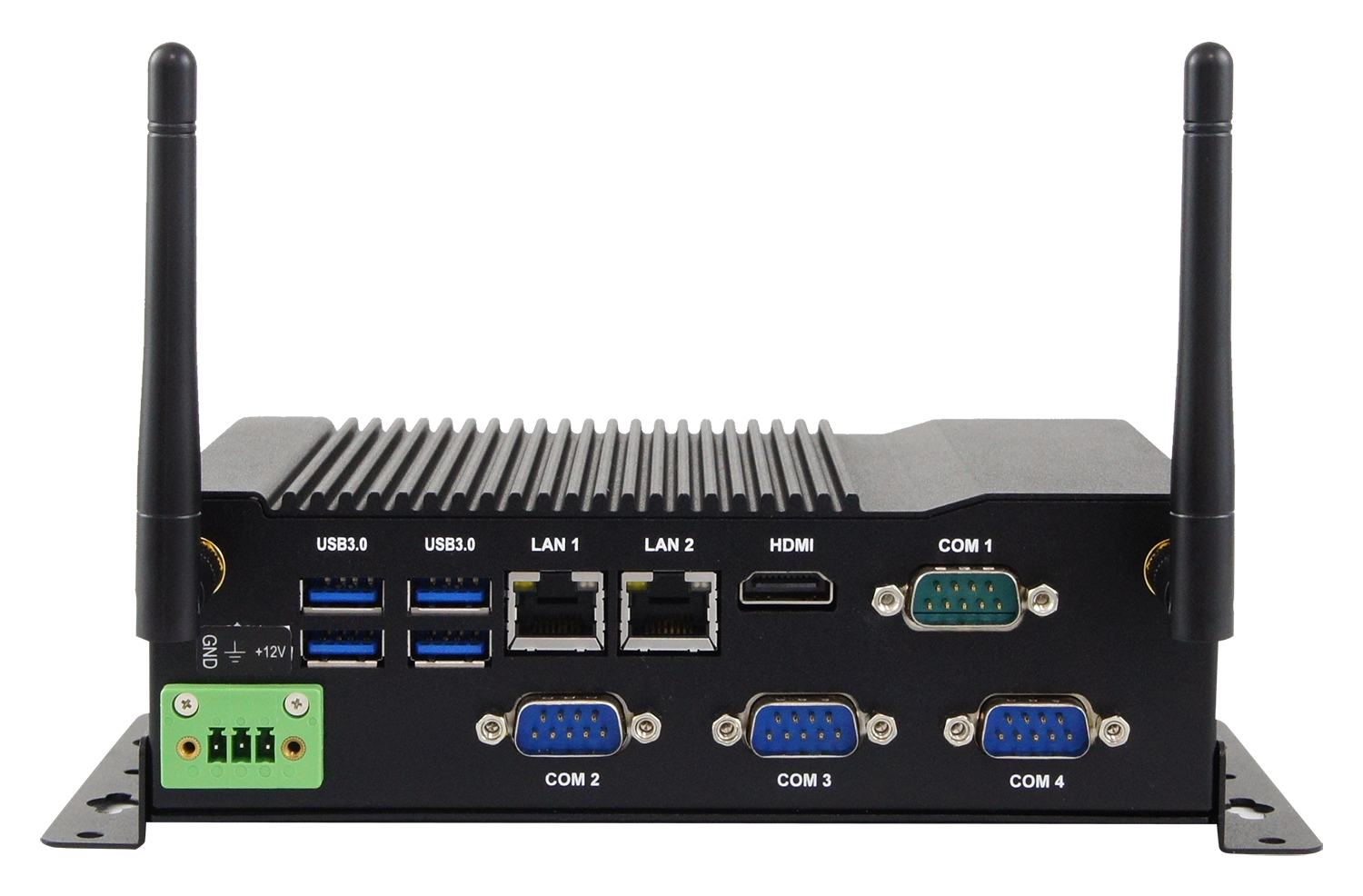

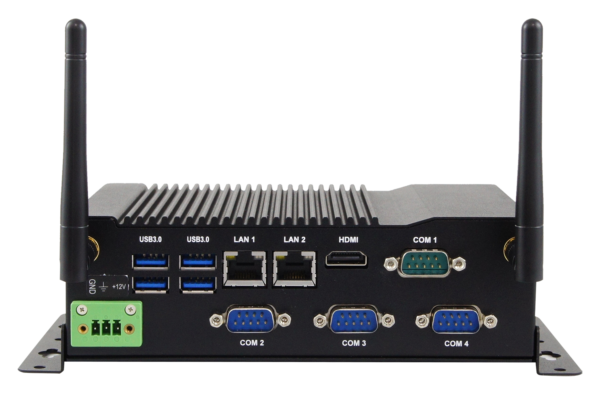

The robust embedded CSB200-818 houses a 3.5-inch single board computer powered by an Intel® Atom™ processor E3930, N4200 or N3350 and is equipped with 4GB (default) of DDR3L-1866 system memory that is upgradeable to 8GB. It offers versatile wired and wireless connectivity with the two onboard RJ45 Gigabit Ethernet ports and dual mini PCIe slots for optional WiFi, Bluetooth and LTE interface cards.
CSB200-818-I30: Fanless system w/ Intel® Atom™ E3930, 4x COM, 1x 4GB DDR3L memory industrial-grade, 1x 2.5” 64GB MLC industrial-grade SSD, w/o power adaptor
CSB200-818-420: Fanless system w/ Intel® Atom™ N4200, 4x COM, 1x 4GB DDR3L memory, 1x 2.5” 500GB SATA HDD, w/o power adaptor
CSB200-818-335: Fanless system w/ Intel® Atom™ N3350, 4x COM, 1x 4GB DDR3L memory, 1x 2.5” 500GB SATA HDD, w/o power adaptor
60W power adaptor (Optional): 60W (12V@5A) power adaptor, DC-jack or bare wire type
