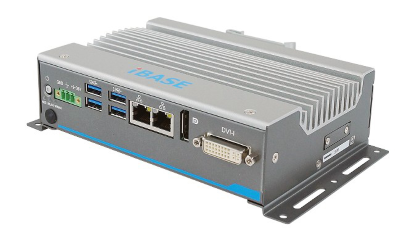

AGS100

SKU 4847

The Intel® Apollo Lake-based AGS Series intelligent IoT gateway system designed for industrial control and factory automation applications can be used as an IoT gateway platform to connect devices and securely transfer data to clouds, or as a Machine-to-Machine (M2M) gateway, providing interconnection of wired or wireless devices to enhance workflow in various industrial environments.

See the Product PDF Datasheet for Full Specifications.

  • Supports Intel® Atom E3950/E3930 & Pentium N4200/Celeron N3350 Series processors
  • Over/Under/Reverse voltage protection
  • Wide-range operating temperature from -40°C to 70°C
  • 9~36V DC wide-range power input
  • Rugged and fanless design
  • DIN-rail mount & Wall mount compatibility

AGS100-I50: Fanless DIN-rail system w/ Intel Atom™processor E3950, 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor.
AGS100-I30: Fanless DIN-rail system w/ Intel Atom™processor E3930, 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor.
AGS100-420 (MOQ): Fanless DIN-rail system w/ Intel® Pentium processor N4200, 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor.
AGS100-335: Fanless DIN-rail system w/ Intel Celeron processor N3350,2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
