µMAGBES

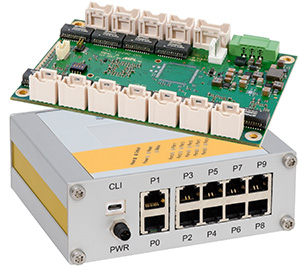

The µMAGBES Family is a 10-28 port manageable Gigabit Ethernet switch of the 4th generation of MPL switches. The robust design, low power consumption, and the various mechanical configurations make the switch ideally suited for any application that needs a rugged and reliable solution.

  • High-End RJ45 or lockable headers for all ports
  • Fanless operation
  • Long-term availability
  • Wide input 5 – 36VDC
  • Fully manageable over Web Interface or Telnet
  • Extended temperature versions -40°C to +85°C



Board Key Data
Switch lookup Engine supports up to 1024 MAC entries with automatic learning and aging
supports auto crossover (Auto MDI/MDIX)
support polarity correction
Jumbo Frame support up to 10k Byte
Status LED 2 LEDs for each copper port (Link/Activity and Speed indicators)
Interfaces
LAN µMAGBES-A10 – 10-port Gigabit on RJ45 connectors or 2mm lockable header
µMAGBES-A19 – 19-port Gigabit on RJ45 connectors or 2mm lockable header
µMAGBES-A28 – 28-port Gigabit on 2mm lockable header
housing & connector kits for M12, RJ45, and Fiber
CLI Optional CLI interface over Micro USB connector
Management Software
MPL developed and maintains a management SW with easy to use web interface.
Management supports: • IEEE 802.1X MAC Address Checking • Switch statistic
(Layer 2 Management) • IEEE 802.1Q VLAN • Port Based VLAN
• IEEE 802.1D RSTP support • Quality of Service
• SNMP V1, V2c, V3 support • Accessible via https, Telnet, RS232
• IGMPv3 snooping • Firmware Update via HTTP or TFTP
• DHCP Client • TLS (HTTPS)
• Port monitoring • Trunking support (planned)
Power
Input voltage 5VDC- 36VDC Input range input over 4-pin power connector
Power consumption Typically 6W per 10 ports
Environment
Storage Temperature -45°C up to +85°C (-49°F to +185°F)
Operating Temperature -20°C to +60°C (-4°F to +140°F) at full operation
optionally -40°C to +85°C (-40°F to +185°F) at full operation
Relative Humidity 5% to 95% non condensing
Standard Compliance
The µMAGBES is designed to meet or even exceed the most common standard, particular references are:
EMC EN 55022, EN 55024, EN 61000, MIL-STD-461E
Shock & Vibration EN 60068
Environmental & Safety EN 50155, MIL-STD-810-F, EN 60601, EN 60950
Approval List CE, IEC 60945, IACS E10

[µMAGBES Versions]
