January 24, 2020

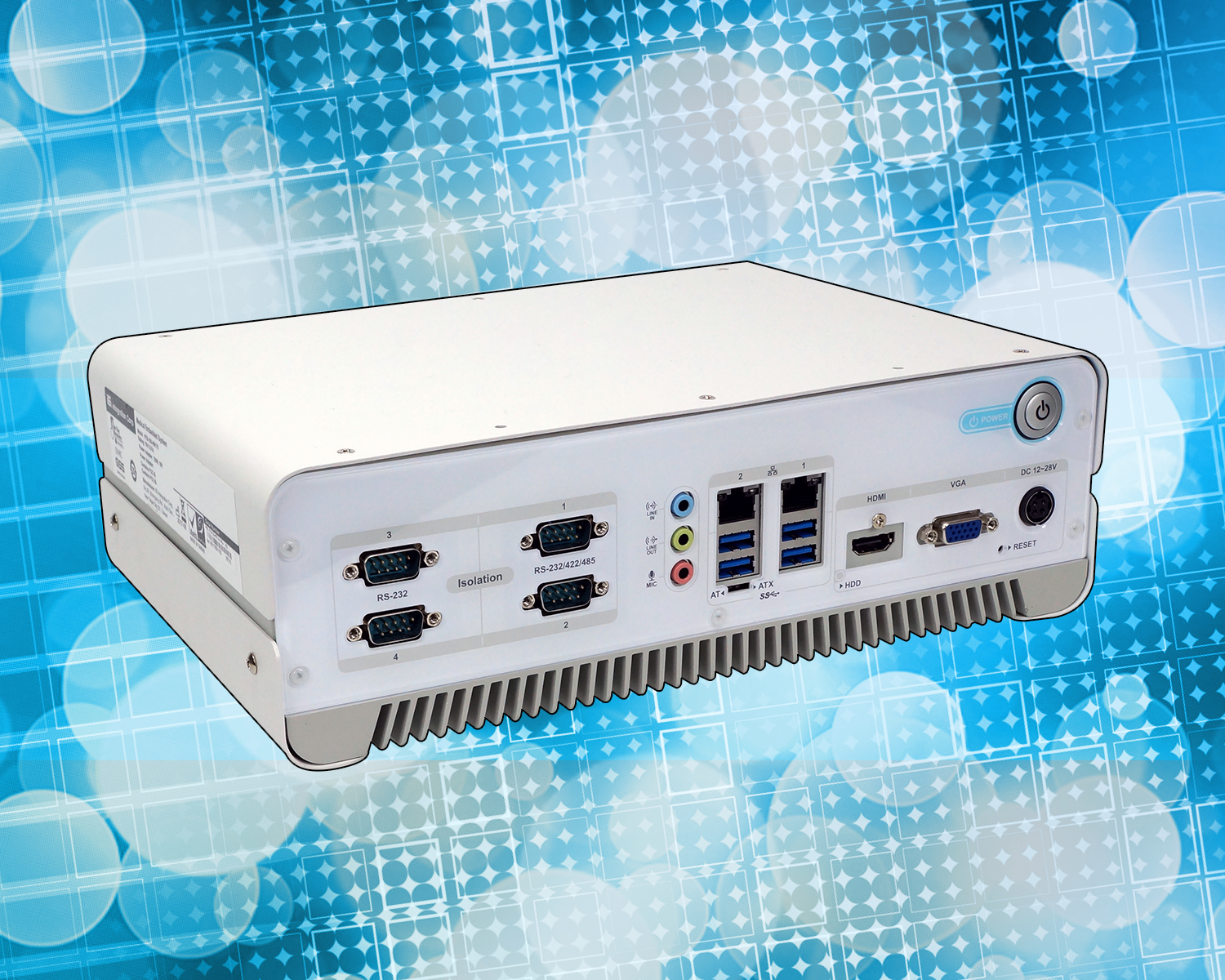

ICP Australia introduces iEi’s HTB-100 Fanless Quad Core Medical Box PC.

The intelligent HTB-100 Medical Computing System will meet all demands from the medical applications, featuring Isolated COM Ports, rich I/O interface and multiple expansions.

Flexible expansion is one of the advantages the HTB-100 has for medical applications. The HTB-100 reserves a PCIe x16 slot for add-on card expansions, such as capture card for medical imaging inspection during surgery.

HTB-100 is equipped with a waterproof top cover in order to prevent any damage from cleaning or liquid which may indirectly affect patients. The HTB-100 can meet flat design and reduce maintenance effort. The cable cover protects the HTB-100 from dust and liquid ingress, and allows the medical staff to easily manage all the cables from the I/O ports, making the cleaning process more convenient in medical environment.

The COM ports support 2.5kV isolation that meets medical standard (IEC 60601-1-2 V4.0). The isolated ports can increase safety on device designed for medical environment and provide comprehensive protection against electrical surges for patients and medical staffs.

The perfect grounding pin design can avoid current from the HTB-100 to vital devices which connect to patients, and to avoid the current damage from other devices.

The HTB-100 is a Fanless Embedded System, with the heatsink situated on the bottom side. The design makes the HTB-100 an easy to clean and reliable system for the medical environments.

KEY FEATURES:

  • Medical Grade with High Performance Fanless Embedded Computing
  • 6th Gen Intel® Core™ Processor Platform with Intel® HM170 Chipset and DDR4 Memory
  • Triple Independent Display with High Resolution Support
  • Isolated COM Ports for Enhancing Safety Among Devices
  • Optional PCIe x16 Expansion Slot Supports More Flexible Functions
